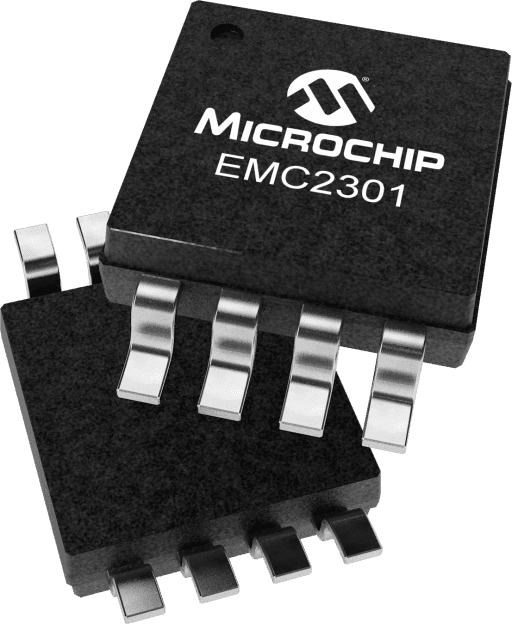

Microchip EMC2301-1-ACZL-TR
Manufacturer No:
EMC2301-1-ACZL-TR
Manufacturer:
Microchip
Package:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Description:
EMC2301 single PWM fan controller with close loop control, 0.5% accurate drive, SMBus, Alert, clock driver or input support
Quantity:
In Stock :8706
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
EMC2301-1-ACZL-TR Information
Microchip EMC2301-1-ACZL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC2301-1-ACZL-TR.
- Type
- Parameter
- # Fans Drivers
- 1
- PWM/Linear Control
- PWM
- # RemoteTemperature Monitors
- 0
- Ambient Temperature Sensor
- 0
- TypicalAccuracy
- N/A
- Max Accuracy
- N/A
- Temperature Max
- 125
- Temperature Min
- -40
- Vcc Max (V)
- 3.6
- Vcc Min (V)
- 3.0
- Type
- Parameter
- SMBus Alert
- Yes
- System Shutdown
- No
- Voltage Monitors
- N/A
Download datasheets and manufacturer documentation for Microchip EMC2301-1-ACZL-TR.
Brochures:
Data Sheets:
Application Notes:
User Guide:
The EMC2301 is an SMBus compliant fan controller with a PWM fan driver. The fan driver is controlled by a programmable frequency PWM driver and Fan Speed Control algorithm that operates in either a closed loop fashion or as a directly PWM-controlled device.
Each closed loop Fan Speed Control algorithm (FSC) has the capability to detect aging fans and alert the system. It will likewise detect stalled or locked fans and trigger an interrupt.
Additionally, the EMC2301 offers a clock output so that multiple devices may be chained and slaved to the same clock source for optimal performance in large distributed systems.
- 4-wire fan compatible
- High speed PWM (26 kHz)
- Low speed PWM (9.5Hz - 2240 Hz)
- Optional detection of aging fans
- Fan Spin Up Control and Ramp Rate Control
- Alert on Fan Stall
- Watchdog Timer
- 0.5% accuracy from 500 RPM to 16k RPM (external crystal oscillator)
- 1% accuracy from 500 RPM to 16k RPM (internal clock)
- SMBus Alert compatible
- CLK Pin can provide a clock source output
- Available in an 8-pin MSOP RoHS Compliant package
- Servers
- Projectors
- Industrial and Networking Equipment
- Notebook Computers
