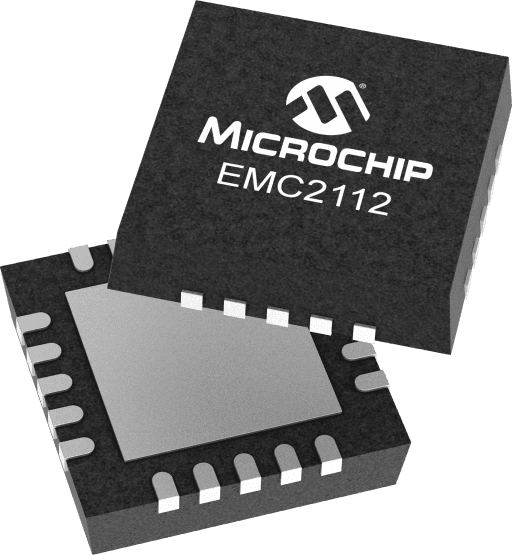

Microchip EMC2112-BP-TR

Manufacturer No:

EMC2112-BP-TR

Manufacturer:

Microchip

Package:

20-VFQFN Exposed Pad

Description:

EMC2112 Single Linear fan controller with 600mA, higher frequency support, 4 temperature sensors, I2C, alert

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMC2112-BP-TR information

Microchip EMC2112-BP-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC2112-BP-TR.

Type
Parameter

# Fans Drivers
1

PWM/Linear Control
Linear

# RemoteTemperature Monitors
3

Ambient Temperature Sensor
1

TypicalAccuracy
±0.25

Max Accuracy
±1.0

Temperature Max
85

Temperature Min
0

Vcc Max (V)
5.0

Vcc Min (V)
3.3

SMBus Alert
Yes

System Shutdown
Yes

Voltage Monitors
No

Download datasheets and manufacturer documentation for Microchip EMC2112-BP-TR.

The EMC2112 is an SMBus, closed-loop, RPM-based fan driver with hardware (HW) thermal shutdown and reset controller. The EMC2112 offers a single High Side fan driver capable of sourcing up to 600mA from a 5V supply.

The EMC2112 utilizes Beta Compensation (an implementation of the BJT or transistor model for thermal diodes) and Resistance Error Correction (REC) to accurately monitor up to three (3) external temperature zones. These features allow great accuracy for CPU substrate thermal diodes on multiple process geometries as well as with discrete diode-connected transistors. Both Beta Compensation and REC can be disabled on the EMC2112 to maintain accuracy when monitoring AMD thermal diodes.

The EMC2112 provides a stand-alone HW thermal shutdown block. The HW thermal shutdown logic can be configured for a few common configurations based on the strapping level of the SHDN_SEL pin on the PCB. The HW thermal shutdown point can be set in 1°C increments by using a discrete resistor connected to the TRIP_SET pin.

The EMC2112 also provides 5V supply 'power good' function with a threshold of 4.5V. This function is provided on the RESET# pin.

1% accuracy with external clock input
3% accuracy with internal clock
Internal clock can be used as a source
Aging fan detection
600mA drive capability
1°C incremental set points for thermal shutdown
Cannot be disabled by software
Provides Reset Function (RESET#) On 5V Supply
±1°C accuracy (60°C to 100°C)
0.125°C resolution
Designed to support 45nm, 65nm, and 90nm CPU Diodes using BJT and transistor model
Eliminates temperature offset due to series resistance from PCB traces and thermal 'Diode'
5V supply for linear fan driver and reset generator
User selectable SMBus address using pull-up resistor on ADDR_SEL pin
Supports Block Read and Write functionality
Available in 20-pin, 4x4 QFN RoHS Compliant package
Notebook Computers
Desktop Computers
Embedded Applications

User Guide
