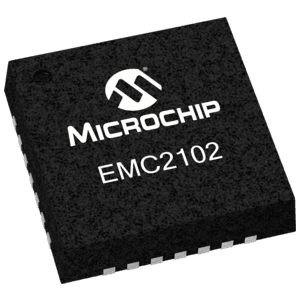

Microchip EMC2102-DZK

Manufacturer No:

EMC2102-DZK

Manufacturer:

Microchip

Package:

28-VFQFN Exposed Pad

Description:

28-VFQFN Exposed Pad Thermal Management 5mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMC2102-DZK information

Microchip EMC2102-DZK technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC2102-DZK.

Type
Parameter

Factory Lead Time
5 Weeks

Mounting Type
Surface Mount

Package / Case
28-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
0°C~85°C

Packaging
Tray

Published
2007

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

Terminal Finish
Matte Tin (Sn) - annealed

Additional Feature
IT CAN ALSO OPERATE WITH 5V SUPPLY

HTS Code
8542.39.00.01

Voltage - Supply
3V~5.5V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
EMC2102

JESD-30 Code
S-XQCC-N28

Function
Fan Control, Temp Monitor

Output Type
2-Wire SMBus

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Analog IC - Other Type
ANALOG CIRCUIT

Accuracy
±3°C(Max)

Topology
ADC (Sigma Delta), Multiplexer, Register Bank

Sensor Type
Internal and External

Output Alarm
Yes

Sensing Temperature
0°C~191°C

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Microchip EMC2102-DZK.

Datasheets:

microchiptechnology-emc2102dzk-datasheets-5807.pdf

ConflictMineralStatement:

microchip-dsc1123ci5400000-conflictmineralstatement-4089.pdf

EMC2102-DZK Overview

Materials provided by Tray were used to package the goods.The output type of this function is 2-Wire SMBus.The low cost of the 28-VFQFN Exposed Pad package makes it familiar to industry professionals.The program can perform the function of Fan Control, Temp Monitor.Device Surface Mount is installed in the way.Internal and External is the type of incorporation.In order for a system to operate reliably, the temperature should remain at 0°C~85°C.The 3V~5.5V Supply Voltage should be provided so that it operates normally.There is a way to measure 0°C~191°C's sensing temperature.In addition to package and temperature, the Base Part Number EMC2102 identifies its Type.Thermal management is possible to find 28 terminations.With a supply voltage of 3.3V, it operates.As its analog IC type, it uses ANALOG CIRCUIT.Thermal management is possible to supply 3V with Thermal managementh a minimum voltage.NOT SPECIFIED can have a typical range of peak reflow temperatures.3.6V is acceptable up to its maximum supply voltage.This product is designed with IT CAN ALSO OPERATE WITH 5V SUPPLY characteristics in mind.

EMC2102-DZK Features

Available in the 28-VFQFN Exposed Pad package
ANALOG CIRCUIT as analog IC type
Peak reflow temperature (Cel) of NOT SPECIFIED
IT CAN ALSO OPERATE WITH 5V SUPPLY

EMC2102-DZK Applications

There are a lot of Microchip Technology
EMC2102-DZK applications of thermal management.

PCs and Notebooks
Data Storage
Data Communications Equipment
Instrumentation
Workstations
Servers
Networking
Telecommunications
Desktop Computers
Notebook Computers
