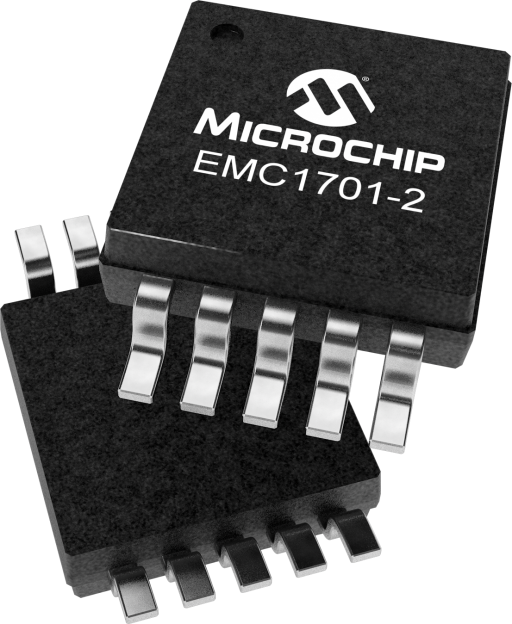

Microchip EMC1701-2-AIZL-TR

Manufacturer No:

EMC1701-2-AIZL-TR

Manufacturer:

Microchip

Package:

10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Description:

EMC1702-1 High-Side current sensor with I2C, 24V, power calculation, 1 temperature sensor, bi-directional, peak detection, alert

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMC1701-2-AIZL-TR information

Microchip EMC1701-2-AIZL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC1701-2-AIZL-TR.

Type
Parameter

Description
Current/DC Power Sensor with Temperature Monitoring

Vsense min FSR (mV)
-10, -20, -40, -80

Vsense max FSR (mV)
10, 20, 40, 80

Vsense accuracy (% FSR, max)
0.9

Vbus Range min (V)
3

Vbus Range max (V)
24

Vbus accuracy (% FSR, max)
0.05

Sampling Interval min (msec)
2.5

Sampling Interval max (msec)
2600

Remote Temperature Monitors
0

# Ambient Temperature Monitors
1

Temperature Accuracy Typical (°)
0.25

Temperature Accuracy Max (°)
1

Alert/Therm
2

Peak Detection
Software

Accumulator?
No

Interface
SMBus/I2C

Address Select
15

# Current Channel
1

ADC Resolution (bit)
11

Download datasheets and manufacturer documentation for Microchip EMC1701-2-AIZL-TR.

The EMC1701 is a combination high-side current sensing device with precision temperature measurement. It measures the voltage developed across an external sense resistor to represent the high-side current of a battery or voltage regulator. The EMC1701 also measures the bus voltage and uses these measured values to present a proportional power calculation. The EMC1701 contains additional bi-directional peak detection circuitry to flag instantaneous current spikes with programmable time duration and magnitude threshold. Finally, the EMC1701 includes an internal diode channel for ambient temperature measurement.

Both current sensing and temperature monitoring include two tiers of protection: one that can be masked and causes the ALERT# pin to be asserted, and the other that cannot be masked and causes the THERM# pin to be asserted.

Bi-directional current measurement
Measures bus voltage
1% current measurement accuracy
Integrated over 82ms to 2.6sec with 11-bit resolution
3V to 24V voltage bus voltage range
Calculates proportional power
Software controls to program time duration and magnitude threshold
Bus or separately powered for low voltage operation
Wide temperature operating range: -40°C to +85°C
±1°C accuracy (-5°C < TA < 85°C)
ALERT# and THERM# outputs for temperature, voltage, and out-of-current limit reporting
Pin-selectable SMBus Address
Block Read and Write
Available in a 12-pin 4mm x 4mm QFN RoHS Compliant Package (EMC1701-1)
Available in a 10-pin MSOP RoHS Compliant Package (EMC1701-2)
Notebook and Desktop Computers
Industrial
Power Management Systems
Embedded Applications

User Guide
