Microchip EMC1462T-AE/RW

Manufacturer No:

EMC1462T-AE/RW

Manufacturer:

Microchip

Package:

WDFN-8

Description:

EMC1462 2 channel 2x2 temperature sensor with 1C accuracy, alert, therm, automatic diode type detection, beta comp, and REC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMC1462T-AE/RW information

Microchip EMC1462T-AE/RW technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC1462T-AE/RW.

Type
Parameter

NumOfChannelsMonitored
2

Max. Accuracy @ 25 °C (degrees Celsius)
1

Typical Accuracy °C (degrees Celsius)
0.25

Features
REC, beta compensation, anti-parallel diodes, ideality corection

InterfaceType
I2C, SMBus

Resolution (bits)
11

Download datasheets and manufacturer documentation for Microchip EMC1462T-AE/RW.

Data Sheets:

7dedab4c3b16466e3fee945791ef6db3.pdf

The EMC1462 is a high accuracy, low cost, System Management Bus (SMBus) temperature sensor. Advanced features such as Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model including modern processors) and automatic diode type detection combine to provide a robust solution for complex environmental monitoring applications.

The EMC1462 monitors two temperature channels (one external and one internal). It provides ±1°C accuracy for both external and internal diode temperatures.

Resistance Error Correction automatically eliminates the temperature error caused by series resistance allowing greater flexibility in routing thermal diodes. Beta Compensation eliminates temperature errors caused by low, variable beta transistors common in today's fine geometry processors. The automatic beta detection feature monitors the external diode/transistor and determines the optimum sensor settings for accurate temperature measurements regardless of processor technology. This frees the user from providing unique sensor configurations for each temperature monitoring application. These advanced features plus ±1° measurement accuracy provide a low-cost, highly flexible and accurate solution for critical temperature monitoring applications.

±1°C accuracy

0.125°C resolution

Automatically determines external diode type and optimal settings

Resistance Error Correction

Supports advanced geometry CPU substrate and thermal diodes

Supports up to 2.2nF diode filter capacitor

Programmable SMBus Address

3.3V Supply Voltage

Programmable temperature limits for ALERT# and THERM#

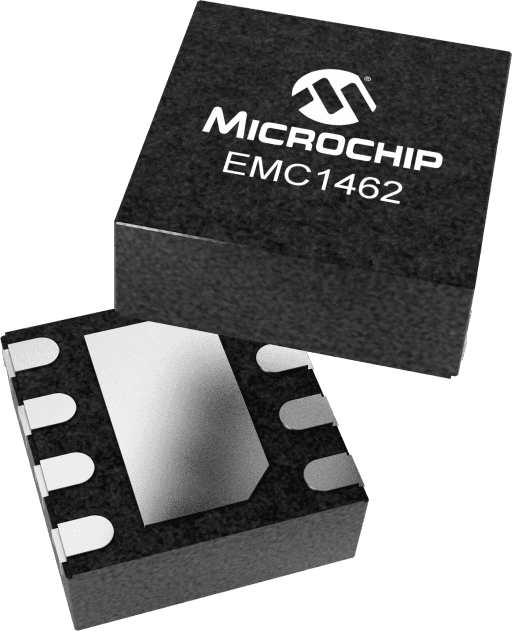

Small 2mm x 2mm WDFN 8-pin RoHS compliant package

Servers
Solid state memory
IOT
Computing- embedded, industrial, desktop, mobile

User Guide
