Microchip EMC1414-A-AIA-TR

Manufacturer No:

EMC1414-A-AIA-TR

Manufacturer:

Package:

Description:

EMC1414 a 4 channel temperature sensor with 1C accuracy, alert, therm, automatic diode type detection, beta comp, and REC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMC1414-A-AIA-TR information

Microchip EMC1414-A-AIA-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC1414-A-AIA-TR.

Type
Parameter

NumOfChannelsMonitored
4

Max. Accuracy @ 25° ; (° ;)
1

Typical Accuracy
0.25

Features
{\r\n \"ValueKind\": 3\r\n}

InterfaceType
I2C, SMBus

Resolution (bits)
11

Download datasheets and manufacturer documentation for Microchip EMC1414-A-AIA-TR.

The EMC1414 is a high accuracy, low cost, System Management Bus (SMBus) temperature sensors. Advanced features such as Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model) and automatic diode type detection combine to provide a robust solution for complex environmental monitoring applications.

The EMC1414 monitors four temperature channels. It provides ±1ºC accuracy for both external and internal diode temperatures.

Resistance Error Correction automatically eliminates the temperature error caused by series resistance allowing greater flexibility in routing thermal diodes. Beta Compensation eliminates temperature errors caused by low, variable beta transistors common in today's fine geometry processors. The automatic beta detection feature monitors each external diode/transistor and determines the optimum sensor settings for accurate temperature measurements regardless of processor technology. This frees the user from providing unique sensor configurations for each temperature monitoring application. These advanced features plus ±1°C measurement accuracy provide a low-cost, highly flexible and accurate solution for critical temperature monitoring applications.

±1°C accuracy

±0.125°C resolution

Automatically determines external diode type and optimal settings

Resistance Error Correction

Anti-parallel diodes for extra diode support

Supports CPU and substrate thermal diodes

Programmable temperature limits for ALERT#

Programmable SMBus Address

Supports up to 2.2nF diode filter capacitor

3.3V Supply Voltage

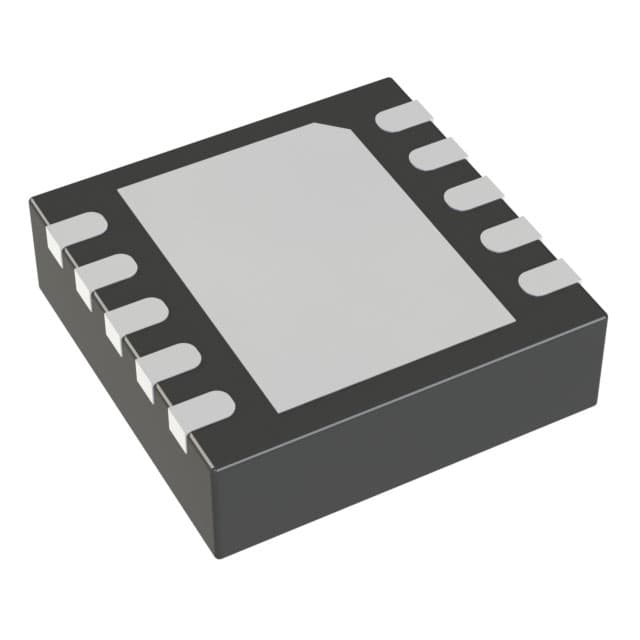

Packages: 10-pin MSOP, 10-pin 3mm x 3mm DFN

Notebook Computers

Desktop Computers

Industrial

Embedded applications

User Guide
