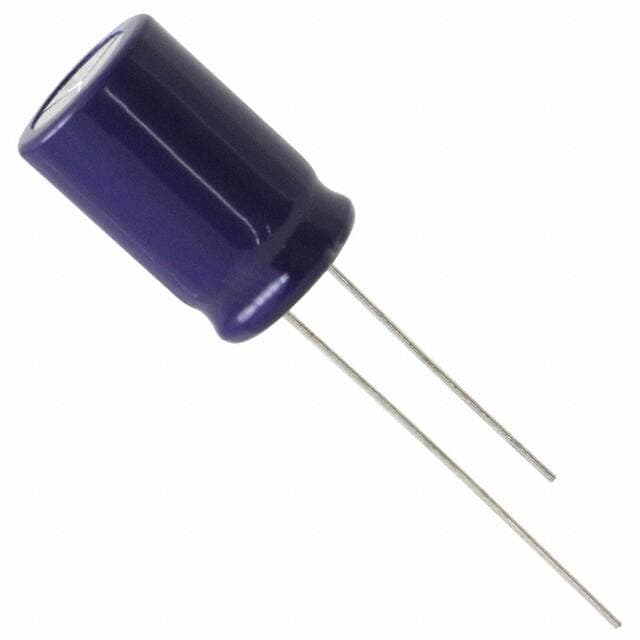

United Chemi-Con ELXY500ELL331MK20S

Manufacturer No:

ELXY500ELL331MK20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXY 330?F Capacitor ±20% Bulk Through Hole 1.19A 0.492Dia 12.50mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXY500ELL331MK20S information

United Chemi-Con ELXY500ELL331MK20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXY500ELL331MK20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXY

Published
2011

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
330?F

Voltage - Rated DC
50V

Lead Pitch
5mm

ESR (Equivalent Series Resistance)
59mOhm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Ripple Current
1.19A

Polarization
Polar

Life (Hours)
7000 hours

Impedance
59mOhm

Ripple Current @ Low Frequency
595mA @ 120Hz

Ripple Current @ High Frequency
1.19A @ 100kHz

Diameter
12.5mm

Height
20mm

Height Seated (Max)
0.846 21.50mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXY500ELL331MK20S.

Datasheets:

unitedchemicon-elxy250ell121mf15d-datasheets-4216.pdf

ELXY500ELL331MK20S Overview

Full charge should result in a ripple current of 1.19A @ 100kHz.To fully perform its function, 59mOhm needs the equivalent series resistance.If the charge is low, ripple current is 595mA @ 120Hz.Keep your seated height below 0.846 21.50mm.A voltage of 50V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.

ELXY500ELL331MK20S Features

the ripple current is 1.19A @ 100kHz.
the ripple current is 595mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C

ELXY500ELL331MK20S Applications

There are a lot of United Chemi-Con
ELXY500ELL331MK20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
