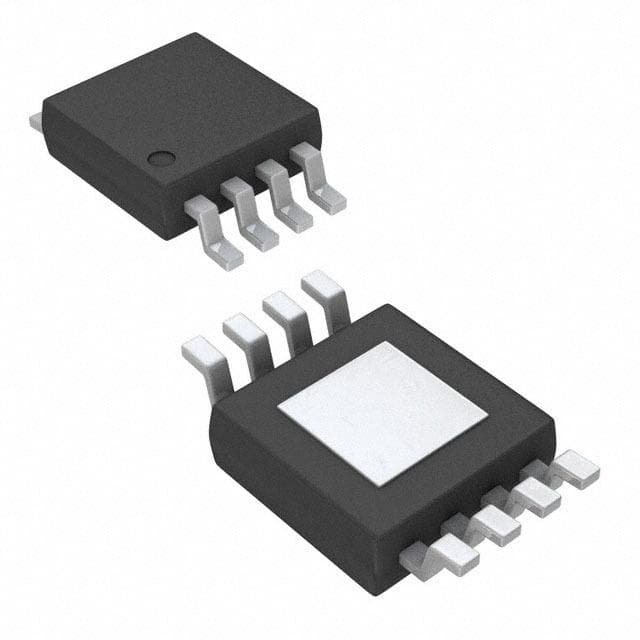

Renesas EL9212IYEZ-T13

Manufacturer No:

EL9212IYEZ-T13

Manufacturer:

Renesas

Package:

Description:

300mA per Channel 1.4μA 100 dB Instrumentational OP Amps 0.4μA 8 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL9212IYEZ-T13 information

Renesas EL9212IYEZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL9212IYEZ-T13.

Type
Parameter

Mount
Surface Mount

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
6V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

JESD-30 Code
S-PDSO-G8

Qualification Status
Not Qualified

Power Supplies
+-6V

Number of Circuits
2

Operating Supply Current
4.5mA

Slew Rate
115 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
100 dB

Current - Input Bias
1.4μA

Output Current per Channel
300mA

Input Offset Voltage (Vos)
1mV

Gain Bandwidth Product
63MHz

Neg Supply Voltage-Nom (Vsup)
-6V

Unity Gain BW-Nom
63000 kHz

Average Bias Current-Max (IIB)
0.4μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
7.5V

Low-Bias
NO

Micropower
NO

-3db Bandwidth
130MHz

Bias Current-Max (IIB) @25C
0.4μA

Programmable Power
NO

Neg Supply Voltage-Max (Vsup)
-7.5V

Wideband
YES

Download datasheets and manufacturer documentation for Renesas EL9212IYEZ-T13.

EL9212IYEZ-T13 Overview

An op amp of this type is a OPERATIONAL AMPLIFIER-type. As far as the packaging is concerned, buffer op amp is delivered in a Tape & Reel (TR) case. It is estimated that there will be at least 8 terminations this year. A total of 8 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 6V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. Op amp ic rates 1mV for input offset voltage. A supply current of 4.5mA can be used to operate this linear amplifier. This op amp ic has 2 circuits. This instrumentation amplifier cannot operate below -40°C degrees Celsius. You should only use instrumentation amplifier at temperatures that are no higher than 85°C. An buffer amplifier is packed in a TAPE AND REEL-shape according to the design. This op amp ic can conduct a minimum voltage gain of 560.

EL9212IYEZ-T13 Features

8 Pins
supply voltage of 6V

EL9212IYEZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL9212IYEZ-T13 Instrumentational OP Amps applications.

Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
