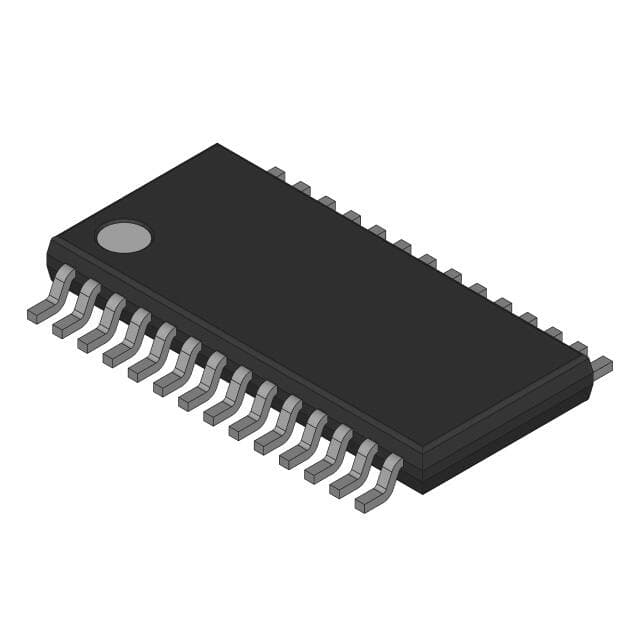

Rochester EL7563CRE

Manufacturer No:

EL7563CRE

Manufacturer:

Rochester

Package:

Description:

28 Terminals 3V DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs Adj to 1MHz 5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7563CRE information

Rochester EL7563CRE technical specifications, attributes, parameters and parts with similar specifications to Rochester EL7563CRE.

Type
Parameter

Mounting Type
Surface Mount

Surface Mount
YES

Operating Temperature
-40°C~85°C

Series
EL7563

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
28

Terminal Finish
TIN LEAD

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
30

JESD-30 Code
R-PDSO-G28

Function
Step-Down

Number of Outputs
1

Voltage - Input (Max)
3.6V

Output Type
Adjustable (Fixed)

Voltage - Input (Min)
3V

Input Voltage-Nom
3.3V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Voltage - Output (Min/Fixed)
1V

Topology
Buck

Control Mode
CURRENT-MODE

Frequency - Switching
Adj to 1MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Voltage - Output (Max)
2.5V

Length
9.7mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester EL7563CRE.

EL7563CRE Overview

There are 28 terminations in this voltage regulator. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. DC DC switching regulator is configured with 1 outputs. This DC DC switching regulator generates Adjustable (Fixed) output on its output pins. This voltage regulator 12v fits the Surface Mount mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~85°C. The switching frequency of this DC-DC switching regulator reaches Adj to 1MHz. This voltage regulator is able to operate with the minimal input voltage of 3V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 1V. The output current of 5A makes dc to dc voltage regulator feature maximum design flexibility. Voltage regulator has an input voltage (Max) of 3.6V. The peak reflow temperature of this regulator amounts to 240 to be essentially indestructible. Voltage regulator is designed to provide a nominal input voltage of 3.3V to meet the operation requirements. DC DC switching regulator is able to operate in an easy way on the basis of the maximal output voltage of 2.5V. This regulator voltage, belonging to the EL7563 family, is a type of DC-DC switching regulator.
