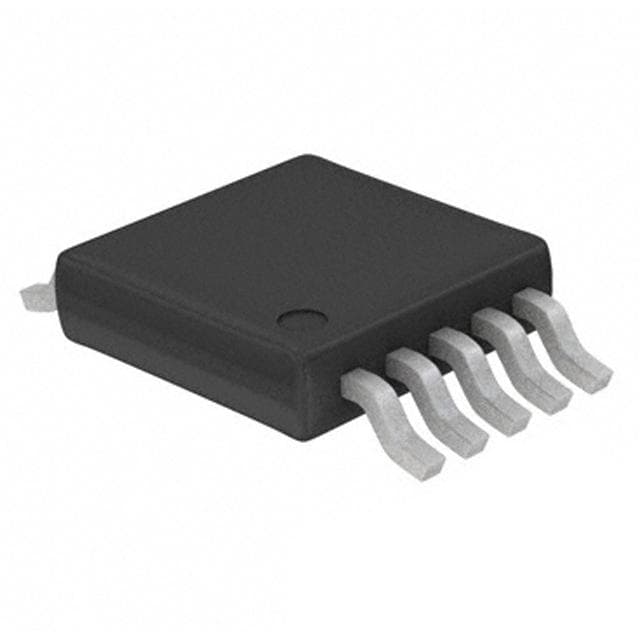

Renesas EL7534IY

Manufacturer No:

EL7534IY

Manufacturer:

Renesas

Package:

MSOP

Description:

10 Terminals 10-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1.5MHz Bulk 600mA MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7534IY information

Renesas EL7534IY technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7534IY.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Packaging
Bulk

Published
2002

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
10

Number of Outputs
1

Qualification Status
Not Qualified

Input Voltage-Nom
3.3V

Temperature Grade
INDUSTRIAL

Analog IC - Other Type
SWITCHING REGULATOR

Current - Output
600mA

Voltage - Output
5.5V

Input Voltage (Min)
2.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1.5MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
BUCK

Length
3mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL7534IY.

Datasheets:

intersil-el7534iy-datasheets-8058.pdf

EL7534IY Overview

For optimal performance, this voltage regulator uses the Bulk package. In this voltage regulator, there are 10 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. Space savings are achieved by placing this voltage regulator in the MSOP package. There are 1 outputs on DC DC switching regulator. Adjusting voltage regulator's output pins generate Adjustable output. There is a switching frequency of 1.5MHz for this voltage regulator 12v. This voltage regulator 12v offers maximum design flexibility with an output current of 600mA. As a result of the 240 peak reflow temperature, this regulator is essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 3.3V for the purposes of operation. Listed under the subcategory of Switching Regulator or Controllers is this voltage regulator 12v. The switching regulator operation is carried out by 10 pins. A high maximum operating temperature 85°C ensures stable operation of switching regulator. In order to ensure DC DC switching regulator's reliability, it operates at the minimum operating temperature of -40°C. Using this voltage regulator dc to dc, you can input a voltage as low as 2.5V. Switching regulator with 10 pins for DC-DC power. This voltage regulator is able to output voltages of 5.5V.
