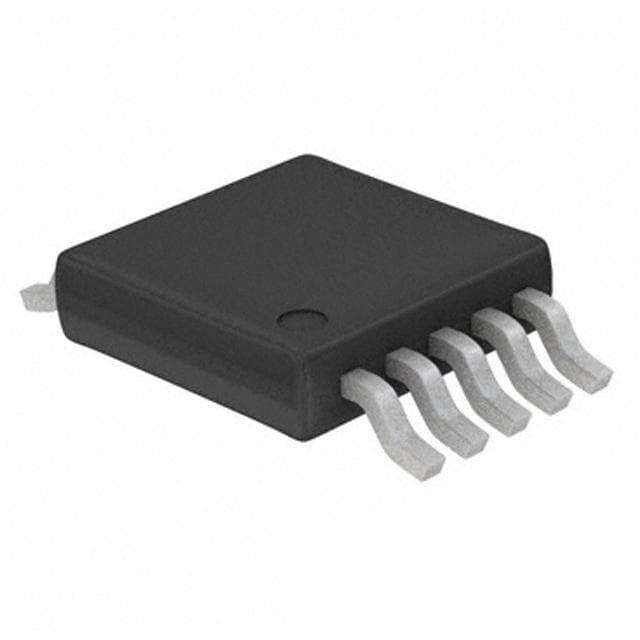

Renesas EL7515IYZ-T7
Manufacturer No:
EL7515IYZ-T7
Manufacturer:
Package:
MSOP
Description:
10 Terminals 10-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1.2MHz Tape & Reel (TR) 600mA MSOP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL7515IYZ-T7 information
Renesas EL7515IYZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7515IYZ-T7.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- MSOP
- Number of Pins
- 10
- Packaging
- Tape & Reel (TR)
- Published
- 2002
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 2 (1 Year)
- Number of Terminations
- 10
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - annealed
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 10
- Number of Outputs
- 1
- Efficiency
- 92 %
- Output Type
- Adjustable
- Input Voltage-Nom
- 5V
- Temperature Grade
- INDUSTRIAL
- Analog IC - Other Type
- SWITCHING REGULATOR
- Current - Output
- 600mA
- Voltage - Output
- 17V
- Topology
- Boost
- Min Input Voltage
- 1.8V
- Control Mode
- VOLTAGE-MODE
- Frequency - Switching
- 1.2MHz
- Max Input Voltage
- 13.2V
- Control Technique
- PULSE WIDTH MODULATION
- Width
- 3mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas EL7515IYZ-T7.
Datasheets:
EL7515IYZ-T7 Overview
For optimal performance, this voltage regulator uses the Tape & Reel (TR) package. In this voltage regulator, there are 10 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. Space savings are achieved by placing this voltage regulator in the MSOP package. There are 1 outputs on DC DC switching regulator. Adjusting voltage regulator's output pins generate Adjustable output. There is a switching frequency of 1.2MHz for this voltage regulator 12v. This voltage regulator 12v offers maximum design flexibility with an output current of 600mA. As a result of the 260 peak reflow temperature, this regulator is essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 5V for the purposes of operation. Listed under the subcategory of Switching Regulator or Controllers is this voltage regulator 12v. The switching regulator operation is carried out by 10 pins. Switching regulator has a maximum output current of 600mA A, which is sufficient to meet the requirements of operation. A high maximum operating temperature 85°C ensures stable operation of switching regulator. In order to ensure DC DC switching regulator's reliability, it operates at the minimum operating temperature of -40°C. The dc to dc voltage regulator's minimum input voltage that DC DC switching regulator can handle is 1.8V volts. An output voltage of 13.2V is maximum for this voltage regulator 12v. Switching regulator with 10 pins for DC-DC power. This voltage regulator is able to output voltages of 17V.
