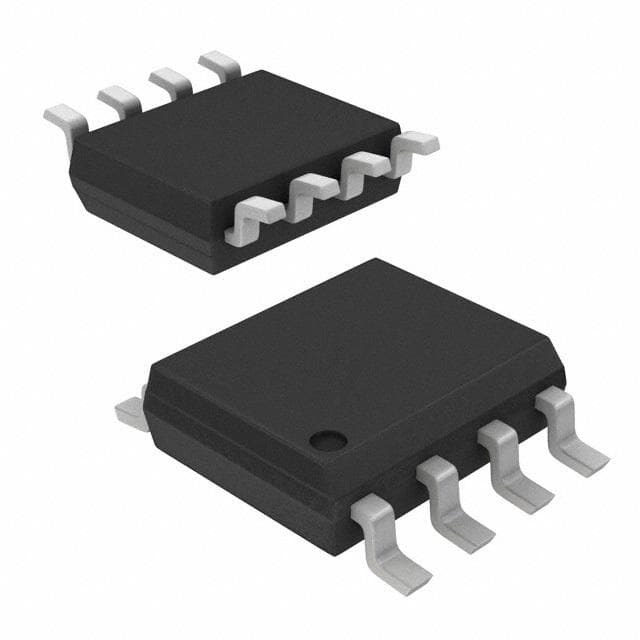

Renesas EL7222CS-T7

Manufacturer No:

EL7222CS-T7

Manufacturer:

Renesas

Package:

SOIC

Description:

Tape & Reel (TR) Discontinued EAR99 Gate Drivers ICs SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL7222CS-T7 information

Renesas EL7222CS-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL7222CS-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
MOSFET Drivers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
2

Supply Voltage
15V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
R-PDSO-G8

Number of Outputs
2

Supply Voltage-Max (Vsup)
15V

Power Supplies
15V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
4.5V

Interface IC Type
BUFFER OR INVERTER BASED MOSFET DRIVER

Output Peak Current Limit-Nom
2A

High Side Driver
NO

Width
3.9116mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL7222CS-T7.

Datasheets:

intersil-el7222cst7-datasheets-8719.pdf

EL7222CS-T7 Overview

A higher degree of flexibility is achieved by adopting its SOIC package.Tape & Reel (TR) represents the packaging method.It's configured with 8 terminations.The device is mounted with Surface Mount.Mosfet driver is designed specifically to run on 15V volts of power.The interface IC is referred to as BUFFER OR INVERTER BASED MOSFET DRIVER.Mosfet driver includes a number of useful electronic components in Mosfet drivers subcategory of MOSFET Drivers.A board with 8 component pins is available.In terms of its basis, there are 2 outputs integrated.A maximum operating temperature of 85°C is permissible.There is a minimum operating temperature of -40°C.Due to its 15V power supply, it can solve power supply problems for an array of diverse applications.

EL7222CS-T7 Features

Embedded in the Tape & Reel (TR) package

EL7222CS-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL7222CS-T7 gate drivers applications.

Broadcast equipment
Active filtering
Head-up and Head mounted displays
High current laser/LED systems
LCD/LCoS/DLP portable and embedded pico projectors
Multicolor LED/laser displays
Smart Phones
Portable Navigation Devices
Portable Media Players
Motor Controls
