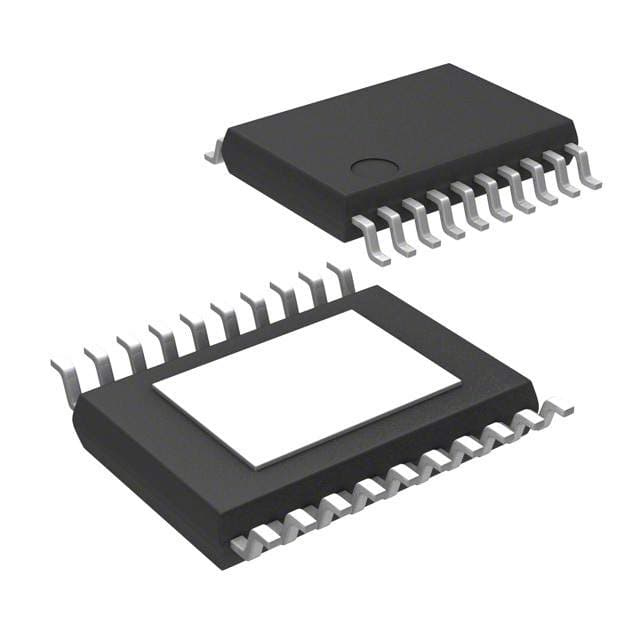

Renesas EL5624AIREZ-T13

Manufacturer No:

EL5624AIREZ-T13

Manufacturer:

Renesas

Package:

HTSSOP EP

Description:

6 Channels 140mA per Channel 50nA Instrumentational OP Amps 0.05μA 20 Pins HTSSOP EP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5624AIREZ-T13 information

Renesas EL5624AIREZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5624AIREZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
HTSSOP EP

Number of Pins
20

Published
2004

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
6

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
20

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Channels
6

Min Supply Voltage
5V

Operating Supply Current
8.5mA

Nominal Supply Current
10mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Current - Input Bias
50nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
15V

Average Bias Current-Max (IIB)
0.05μA

Power Supply Rejection Ratio (PSRR)
55dB

-3db Bandwidth
12MHz

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5624AIREZ-T13.

EL5624AIREZ-T13 Overview

A HTSSOP EP case is used to package the op amp. BUFFER-type instrumentation amplifiers are used in this application. It is estimated that there will be 20 terminations in the next few months. There are a total of 20 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 15V volts. It should be noted that this op amp is a type of Buffer Amplifier device. There are 20 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 15V. An 8.5mA volt supply current is needed for this linear amplifier to operate. There are 6 channels on the operational amplifiers. In order for op amp to function properly, the temperature should not be lower than -40°C degrees Celsius. Instrumentation amplifier should only be used at temperatures up to 85°C. I would like to point out that this electrical component is capable of working from a voltage below 15V as far as the power supply is concerned. As a general rule, it is advisable to keep the op amp's supply voltage above 5V at all times.

EL5624AIREZ-T13 Features

20 Pins
supply voltage of 15V

EL5624AIREZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5624AIREZ-T13 Instrumentational OP Amps applications.

Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
