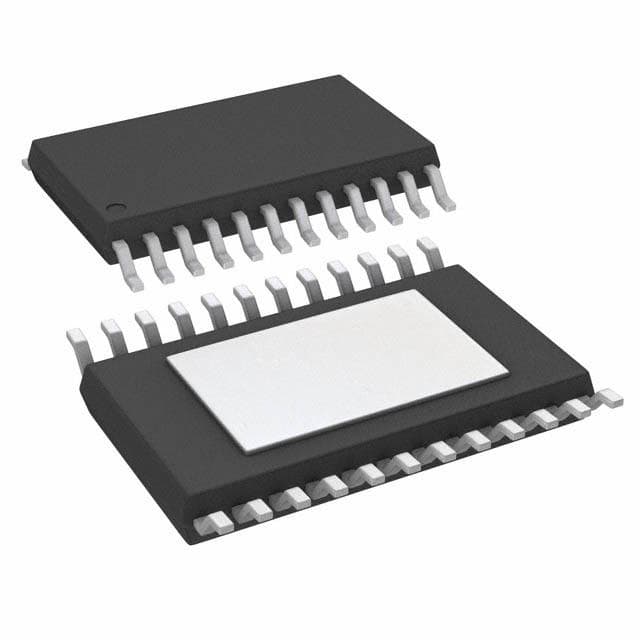

Renesas EL5611IREZ-T13

Manufacturer No:

EL5611IREZ-T13

Manufacturer:

Renesas

Package:

Description:

6 Channels 65mA per Channel 2nA Instrumentational OP Amps 24 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5611IREZ-T13 information

Renesas EL5611IREZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5611IREZ-T13.

Type
Parameter

Mount
Surface Mount

Published
2003

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
6

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
24

JESD-30 Code
R-PDSO-G24

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
4.5V

Number of Channels
6

Operating Supply Current
2.5mA

Quiescent Current
2.5mA

Slew Rate
75 V/μs

Current - Input Bias
2nA

Input Offset Voltage (Vos)
3mV

Bandwidth
60000 kHz

Gain Bandwidth Product
32MHz

-3db Bandwidth
60MHz

Consumer IC Type
VIDEO AMPLIFIER

Length
7.8mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5611IREZ-T13.

EL5611IREZ-T13 Overview

The number of terminations is approaching the 24 mark. The total number of pins on linear amplifier is 24. As far as the input offset voltage is concerned, linear amplifier rates at 3mV. It is possible to operate this buffer amplifier from a supply current of 2.5mA . Op amp ic has 6 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, op amp should not be used. There is an 2.5mA quiescent current running through op amp ic. VIDEO AMPLIFIER sorts consumer ICs by type.

EL5611IREZ-T13 Features

24 Pins

EL5611IREZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5611IREZ-T13 Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
