Rochester EL5525IRE

Manufacturer No:

EL5525IRE

Manufacturer:

Rochester

Package:

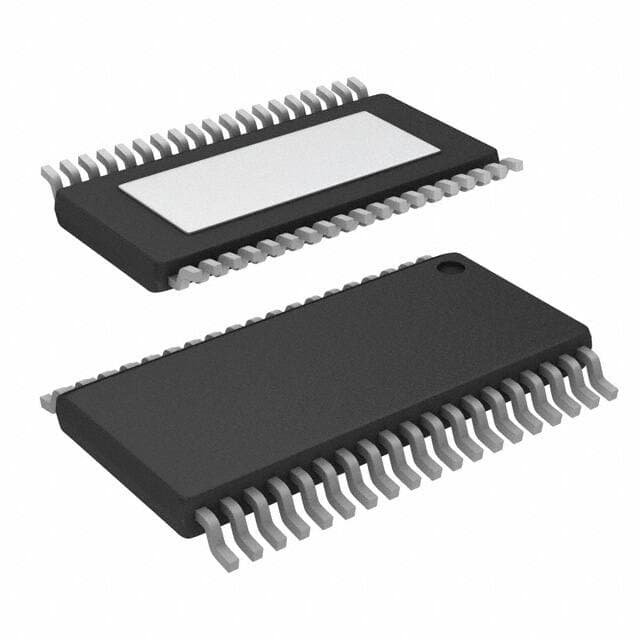

38-TFSOP (0.173, 4.40mm Width) Exposed Pad

Description:

Converter, TFT LCD 0.5V~14.95V 240 Cel DUAL Specialized Voltage Regulator -40°C~85°C 38 Pins 38 Terminations 38-TFSOP (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5525IRE information

Rochester EL5525IRE technical specifications, attributes, parameters and parts with similar specifications to Rochester EL5525IRE.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
38-TFSOP (0.173, 4.40mm Width) Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C

Packaging
Tube

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
38

Terminal Finish
TIN LEAD

Applications
Converter, TFT LCD

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
38

JESD-30 Code
R-PDSO-G38

Number of Outputs
18

Supply Voltage-Max (Vsup)
16.5V

Supply Voltage-Min (Vsup)
4.5V

Voltage - Input
4.5V~16.5V

Voltage - Output
0.5V~14.95V

Length
9.7mm

Height Seated (Max)
1.2mm

Width
4.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester EL5525IRE.

Datasheets:

rochesterelectronicsllc-el5525ire-datasheets-0931.pdf

EL5525IRE Overview

There are 18 outputs supported by the voltage regulator. Transport is made easy with the package of 38-TFSOP (0.173, 4.40mm Width) Exposed Pad. Currently, Tube packages are available for shipping. Volatge output for this voltage controller is 0.5V~14.95V. Easy adaptability with the Surface Mount universal mount. It is intended for use in applications such as Converter, TFT LCD and others. Ideally, the operating temperature should be set at -40°C~85°C in order to prevent malfunction. The variable voltage regulator input voltage is designed to be 4.5V~16.5V. It contains terminals with the number 38. The part has received praise for being a ANALOG CIRCUIT voltage regulator. Initially, the pinout of the alternator regulator begins with 38 pins. It can perform many demanding tasks since it is supplied with a voltage of 15V.

EL5525IRE Features

Widely used in Converter, TFT LCD applications
ANALOG CIRCUIT analog IC

EL5525IRE Applications

There are a lot of Rochester Electronics, LLC
EL5525IRE Specialized Voltage Regulators applications.

DDR Vooo and V? Voltage Generation
PC Dual Power Supply
Server DDR Power
Desktop Computer
Graphics Cards
Cell Phones
Wireless Modems
PCS Phones
Two-Way Pagers
PHS Phones
