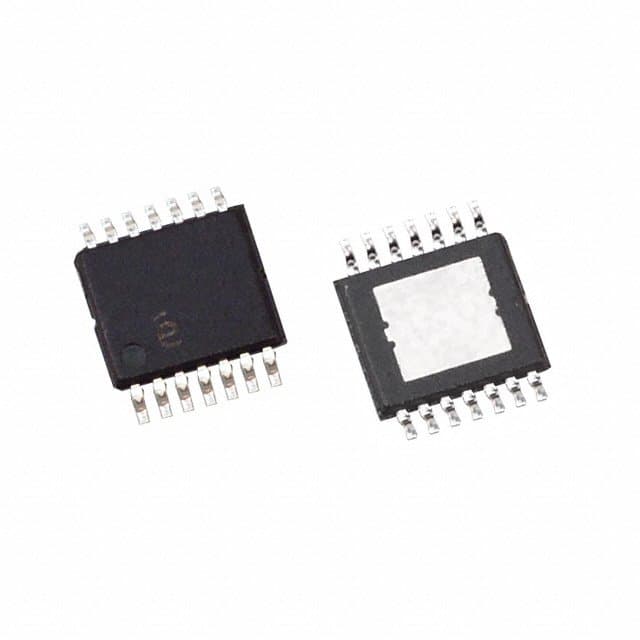

Renesas EL5524IRE-T7

Manufacturer No:

EL5524IRE-T7

Manufacturer:

Renesas

Package:

Description:

4 Channels 140mA per Channel Instrumentational OP Amps 0.05μA 14 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5524IRE-T7 information

Renesas EL5524IRE-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5524IRE-T7.

Type
Parameter

Mount
Surface Mount

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
4

Supply Voltage
15V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
14

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Temperature Grade
INDUSTRIAL

Number of Channels
4

Operating Supply Current
5.4mA

Amplifier Type
BUFFER

Output Current per Channel
140mA

Average Bias Current-Max (IIB)
0.05μA

Supply Voltage Limit-Max
18V

-3db Bandwidth
12MHz

Length
5mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL5524IRE-T7.

Datasheets:

intersil-el5524iret7-datasheets-6616.pdf

EL5524IRE-T7 Overview

An op amp of this type is a BUFFER-type. As far as the packaging is concerned, buffer op amp is delivered in a Tape & Reel (TR) case. It is estimated that there will be at least 14 terminations this year. A total of 14 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 15V battery and that the battery should be inserted in the amplifier. A type of Buffer Amplifier op amp ic can be identified by the fact that this is a type of Buffer Amplifier device. A supply current of 5.4mA can be used to operate this linear amplifier. There are a total of 4 channels available on the op amps.

EL5524IRE-T7 Features

14 Pins
supply voltage of 15V

EL5524IRE-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5524IRE-T7 Instrumentational OP Amps applications.

Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
