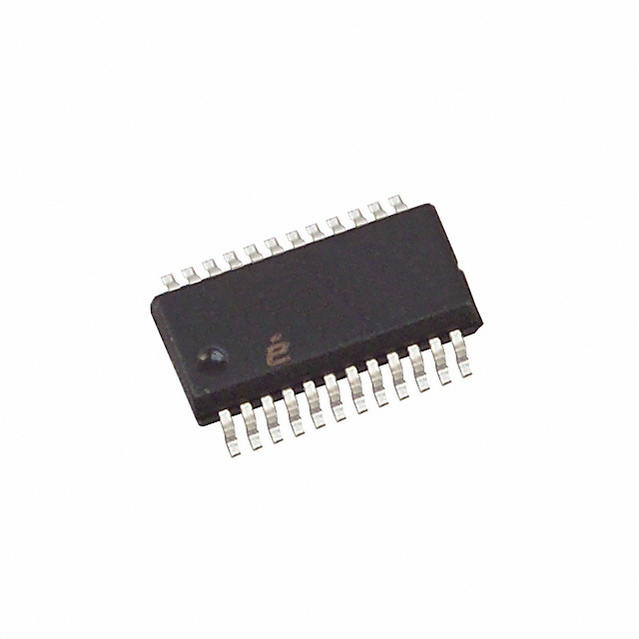

Renesas EL5375IU-T7
Manufacturer No:
EL5375IU-T7
Manufacturer:
Package:
SSOP
Description:
67mA per Channel 12.5μA Instrumentational OP Amps 24 Pins SSOP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL5375IU-T7 information
Renesas EL5375IU-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5375IU-T7.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- SSOP
- Packaging
- Tape & Reel (TR)
- Published
- 2003
- JESD-609 Code
- e0
- Part Status
- Discontinued
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 24
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Lead (Sn/Pb)
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Line Driver or Receivers
- Technology
- BIPOLAR
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 240
- Number of Functions
- 3
- Supply Voltage
- 5V
- Reach Compliance Code
- not_compliant
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Pin Count
- 24
- JESD-30 Code
- R-PDSO-G24
- Qualification Status
- Not Qualified
- Power Supplies
- +-5V
- Temperature Grade
- INDUSTRIAL
- Number of Circuits
- 3
- Operating Supply Current
- 9.6mA
- Slew Rate
- 900 V/μs
- Current - Input Bias
- 12.5μA
- Output Current per Channel
- 67mA
- Input Offset Voltage (Vos)
- 3mV
- Gain Bandwidth Product
- 200MHz
- Input Characteristics
- DIFFERENTIAL
- -3db Bandwidth
- 550MHz
- Interface IC Type
- LINE RECEIVER
- Receiver Number of Bits
- 3
- Interface Standard
- GENERAL PURPOSE
- Negative Supply Voltage-Nom
- -5V
- Length
- 8.6614mm
- Height Seated (Max)
- 1.7272mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for Renesas EL5375IU-T7.
EL5375IU-T7 Overview
It is packaged in an SSOP-case that protects the operational amplifiers from damage. As far as the packaging is concerned, buffer op amp is delivered in a Tape & Reel (TR) case. It is estimated that there will be at least 24 terminations this year. A total of 24 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 5V battery and that the battery should be inserted in the amplifier. A type of Line Driver or Receivers op amp ic can be identified by the fact that this is a type of Line Driver or Receivers device. Op amp ic rates 3mV for input offset voltage. A supply current of 9.6mA can be used to operate this linear amplifier. This op amp ic has 3 circuits. This instrumentation amplifier cannot operate below -40°C degrees Celsius. You should only use op amp buffer at temperatures that are no higher than 85°C. The interface IC of the electronic part is classified as LINE RECEIVER.
EL5375IU-T7 Features
24 Pins
supply voltage of 5V
EL5375IU-T7 Applications
There are a lot of Intersil (Renesas Electronics America)
EL5375IU-T7 Instrumentational OP Amps applications.
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
