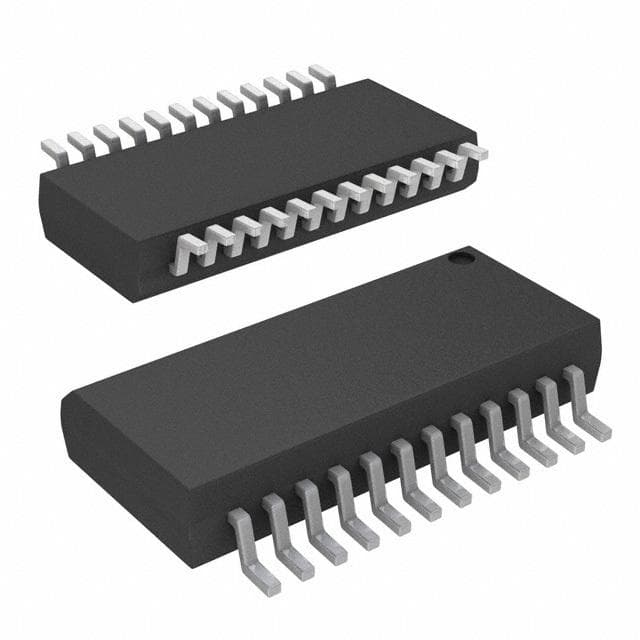

Renesas EL5372IUZ-T13

Manufacturer No:

EL5372IUZ-T13

Manufacturer:

Renesas

Package:

QSOP

Description:

95mA per Channel 6μA Instrumentational OP Amps 9V 24 Pins QSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5372IUZ-T13 information

Renesas EL5372IUZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5372IUZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
24

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Line Driver or Receivers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
3

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
24

Qualification Status
Not Qualified

Operating Supply Voltage
9V

Power Supplies
+-5V

Number of Circuits
3

Max Supply Voltage
11V

Min Supply Voltage
4.75V

Operating Supply Current
5.6mA

Nominal Supply Current
14mA

Max Supply Current
14mA

Slew Rate
700 V/μs

Current - Input Bias
6μA

Output Current per Channel
95mA

Input Offset Voltage (Vos)
7mV

Gain Bandwidth Product
100MHz

Differential Output
NO

Input Characteristics
DIFFERENTIAL

Max Dual Supply Voltage
5.5V

-3db Bandwidth
250MHz

Interface IC Type
LINE RECEIVER

Receiver Number of Bits
3

Interface Standard
GENERAL PURPOSE

Negative Supply Voltage-Nom
-5V

Length
8.6614mm

Height Seated (Max)
1.7272mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5372IUZ-T13.

EL5372IUZ-T13 Overview

In order to protect the op amps, a QSOP case is used. In recent months, the number of terminations has approached 24. It consists of a total of 24 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 5V battery. A type of Line Driver or Receivers buffer op amp is what this device is specifically, to be more precise. It has 24 pins that make up the linear amplifier. In terms of input offset voltage, operational amplifier rates 7mV. In order for this instrumentation amplifier to operate, the supply current needs to be between 5.6mA and 10 . In total, there are 3 circuits on this buffer amplifier. It is recommended that the temperature of this op amp ic should not fall below -40°C degrees Fahrenheit at any time. Linear amplifier shouldn't be used above 85°C degrees. The operating supply voltage of the buffer op amp is rated at 9V. When it comes to the voltage from which this electrical part will operate, it can operate at a maximum of less than 11V. It is recommended that you keep the instrumentation amplifier's supply voltage higher than 4.75V when using it. It is recommended that you conduct this electronic part using the dual supply voltage of 5.5V. Interface IC type LINE RECEIVER can be assigned to the op amps.

EL5372IUZ-T13 Features

24 Pins
supply voltage of 5V

EL5372IUZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5372IUZ-T13 Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
