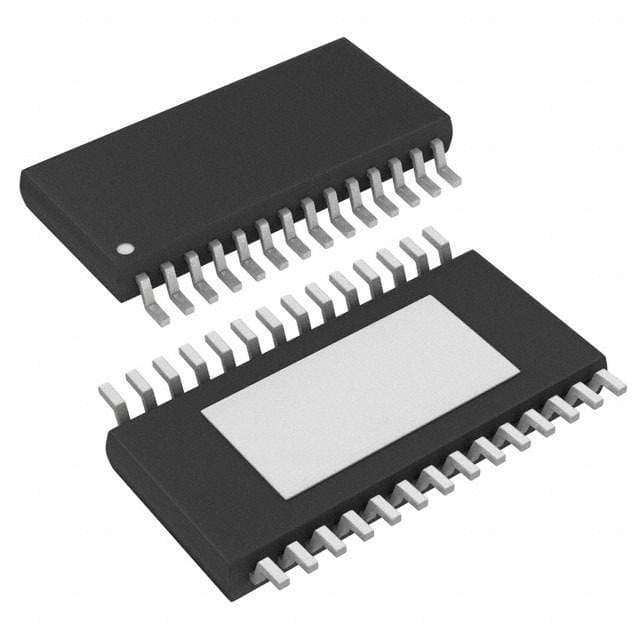

Renesas EL5324IRE

Manufacturer No:

EL5324IRE

Manufacturer:

Renesas

Package:

Description:

10 Channels 140mA per Channel 2nA Instrumentational OP Amps 0.05μA 28 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5324IRE information

Renesas EL5324IRE technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5324IRE.

Type
Parameter

Mount
Surface Mount

Published
2002

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
Buffer Amplifiers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
10

Supply Voltage
15V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
28

JESD-30 Code
R-PDSO-G28

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Operating Supply Current
7.8mA

Supply Current-Max
9.5mA

Slew Rate
15 V/μs

Amplifier Type
BUFFER

Current - Input Bias
2nA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
2mV

Gain Bandwidth Product
8MHz

Average Bias Current-Max (IIB)
0.05μA

Supply Voltage Limit-Max
18V

-3db Bandwidth
12MHz

Bias Current-Max (IIB) @25C
0.05μA

Length
9.7mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL5324IRE.

EL5324IRE Overview

There are two types of operational amplifiers in this circuit. In recent months, the number of terminations has approached 28. It consists of a total of 28 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 15V battery. A type of Buffer Amplifiers buffer op amp is what this device is specifically, to be more precise. In terms of input offset voltage, operational amplifier rates 2mV. In order for this instrumentation amplifier to operate, the supply current needs to be between 7.8mA and 10 . Buffer op amp is equipped with 10 channels on the device. It is recommended that the temperature of this op amp ic should not fall below -40°C degrees Fahrenheit at any time. Linear amplifier shouldn't be used above 85°C degrees.

EL5324IRE Features

28 Pins
supply voltage of 15V

EL5324IRE Applications

There are a lot of Intersil (Renesas Electronics America)
EL5324IRE Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
