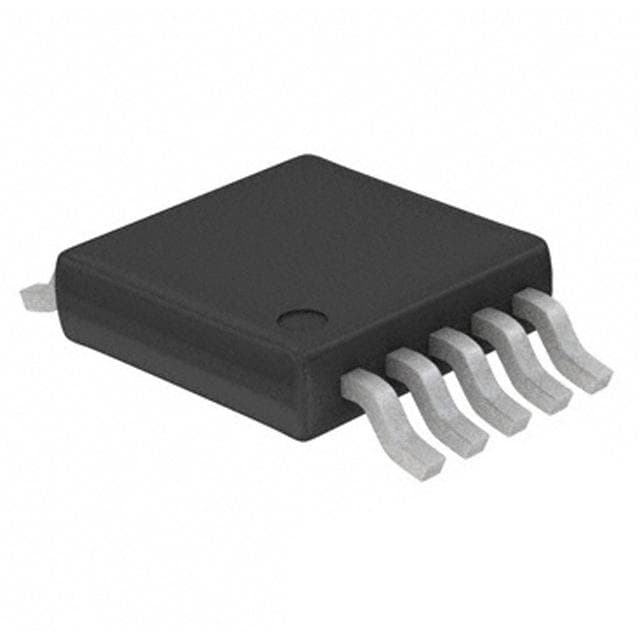

Renesas EL5292ACY-T13

Manufacturer No:

EL5292ACY-T13

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 120mA per Channel 4μA Instrumentational OP Amps 10 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5292ACY-T13 information

Renesas EL5292ACY-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5292ACY-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Published
2002

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
10

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
6.6V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
5V

Number of Channels
2

Number of Circuits
2

Slew Rate
2300 V/μs

Current - Input Bias
4μA

Output Current per Channel
120mA

Input Offset Voltage (Vos)
1mV

Bandwidth
600000 kHz

-3db Bandwidth
600MHz

Consumer IC Type
VIDEO AMPLIFIER

Length
3mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL5292ACY-T13.

EL5292ACY-T13 Overview

Op amp is packaged in MSOP case. The number of terminations approaches 10. Linear amplifier has a total of 10 pins. Linear amplifier includes 10 pins. Regarding input offset voltage, buffer amplifier rates 1mV voltage. Operational amplifier can operate supply current at 6mA. There are 2 circuits on op amps. Instrumentation amplifier has 2 channels on it. It should not lower than -40°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 85°C. Electronic ic chip's consumer IC type can be sorted with VIDEO AMPLIFIER.

EL5292ACY-T13 Features

10 Pins

EL5292ACY-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5292ACY-T13 Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
