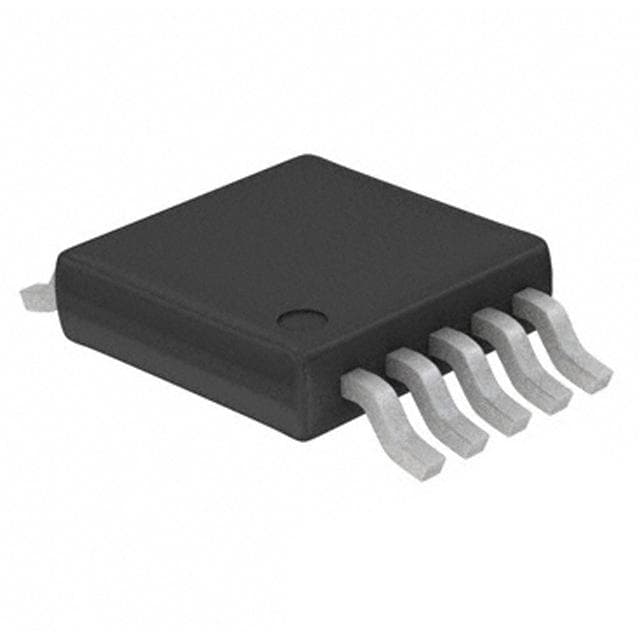

Renesas EL5246CYZ-T13

Manufacturer No:

EL5246CYZ-T13

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 120mA per Channel 2nA Instrumentational OP Amps 10 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5246CYZ-T13 information

Renesas EL5246CYZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5246CYZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
10

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
2

Operating Supply Current
7mA

Current - Input Bias
2nA

Output Current per Channel
120mA

Input Offset Voltage (Vos)
25mV

Bandwidth
100000 kHz

Gain Bandwidth Product
60MHz

-3db Bandwidth
100MHz

Consumer IC Type
VIDEO AMPLIFIER

Length
3mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5246CYZ-T13.

EL5246CYZ-T13 Overview

There is a MSOP case in which the instrumentation amplifier is packaged. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 10 mark. The total number of pins on linear amplifier is 10. 10 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 25mV. It is possible to operate this buffer amplifier from a supply current of 7mA . Op amp ic has 2 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used. VIDEO AMPLIFIER sorts consumer ICs by type.
