Renesas EL5224IREZ-T13
Manufacturer No:
EL5224IREZ-T13
Manufacturer:
Package:
HTSSOP EP
Description:

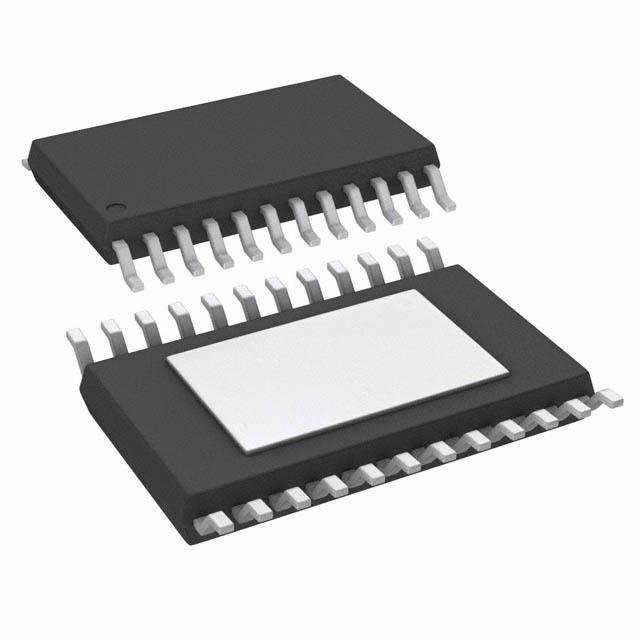

8 Channels 140mA per Channel 2nA Instrumentational OP Amps 0.05μA 15V 24 Pins HTSSOP EP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
EL5224IREZ-T13 information
Renesas EL5224IREZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5224IREZ-T13.
- Type
- Parameter
- Mount
- Surface Mount
- Package / Case
- HTSSOP EP
- Published
- 2002
- JESD-609 Code
- e3
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 24
- ECCN Code
- EAR99
- Terminal Finish
- MATTE TIN
- Max Operating Temperature
- 85°C
- Min Operating Temperature
- -40°C
- Subcategory
- Buffer Amplifier
- Technology
- CMOS
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 8
- Supply Voltage
- 15V
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 24
- JESD-30 Code
- R-PDSO-G24
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 15V
- Temperature Grade
- INDUSTRIAL
- Operating Supply Current
- 6.8mA
- Nominal Supply Current
- 8mA
- Slew Rate
- 15 V/μs
- Amplifier Type
- BUFFER
- Current - Input Bias
- 2nA
- Output Current per Channel
- 140mA
- Input Offset Voltage (Vos)
- 2mV
- Gain Bandwidth Product
- 8MHz
- Voltage Gain
- 0.069dB
- Average Bias Current-Max (IIB)
- 0.05μA
- -3db Bandwidth
- 12MHz
- Bias Current-Max (IIB) @25C
- 0.05μA
- Height Seated (Max)
- 1.2mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Renesas EL5224IREZ-T13.
EL5224IREZ-T13 Overview
There is a HTSSOP EP case in which the instrumentation amplifier is packaged. Buffer amps of this type are called BUFFER-types. The number of terminations is approaching the 24 mark. The total number of pins on linear amplifier is 24. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Buffer Amplifier devices. As far as the input offset voltage is concerned, linear amplifier rates at 2mV. It is possible to operate this buffer amplifier from a supply current of 6.8mA . 0.069dB should be the voltage gain. Op amp ic has 8 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used. The operating supply voltage of the buffer op amp is rated at 15V.
