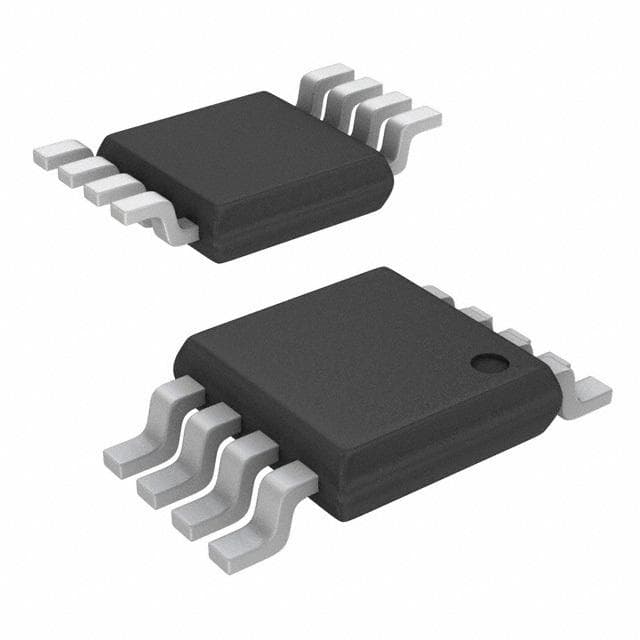

Renesas EL5221CYZ-T7

Manufacturer No:

EL5221CYZ-T7

Manufacturer:

Renesas

Package:

MSOP

Description:

120mA per Channel 2nA Instrumentational OP Amps 0.05μA 8 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5221CYZ-T7 information

Renesas EL5221CYZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5221CYZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
8

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Buffer Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Qualification Status
Not Qualified

Power Supplies
+-5/15V

Number of Circuits
2

Operating Supply Current
500μA

Supply Current-Max
1.5mA

Slew Rate
10 V/μs

Amplifier Type
BUFFER

Current - Input Bias
2nA

Output Current per Channel
120mA

Input Offset Voltage (Vos)
2mV

Neg Supply Voltage-Nom (Vsup)
-5V

Average Bias Current-Max (IIB)
0.05μA

Supply Voltage Limit-Max
9V

-3db Bandwidth
12MHz

Bias Current-Max (IIB) @25C
0.05μA

Neg Supply Voltage-Max (Vsup)
-9V

Length
3mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5221CYZ-T7.

Datasheets:

intersil-el5221cyzt7-datasheets-4175.pdf

EL5221CYZ-T7 Overview

There is a MSOP case in which the instrumentation amplifier is packaged. Buffer amps of this type are called BUFFER-types. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. The total number of pins on linear amplifier is 8. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Buffer Amplifier devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 2mV. It is possible to operate this buffer amplifier from a supply current of 500μA . A linear amplifier like this has 2 circuits on it. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, op amp should not be used.

EL5221CYZ-T7 Features

8 Pins
supply voltage of 5V

EL5221CYZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5221CYZ-T7 Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
