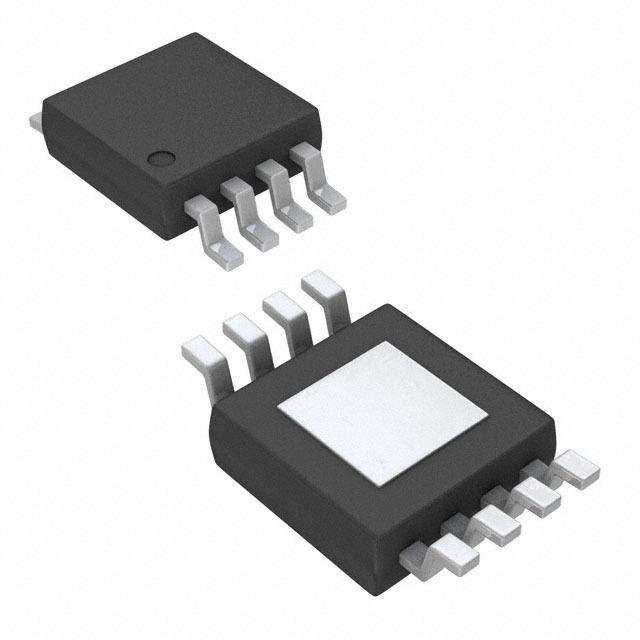

Renesas EL5211IYEZ-T13

Manufacturer No:

EL5211IYEZ-T13

Manufacturer:

Renesas

Package:

MSOP

Description:

65mA per Channel 2nA 45 dB Instrumentational OP Amps 15V 8 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5211IYEZ-T13 information

Renesas EL5211IYEZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5211IYEZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
8

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Operating Supply Voltage
15V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
16.5V

Min Supply Voltage
4.5V

Operating Supply Current
5mA

Nominal Supply Current
7.5mA

Slew Rate
75 V/μs

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
45 dB

Current - Input Bias
2nA

Output Current per Channel
65mA

Input Offset Voltage (Vos)
3mV

Gain Bandwidth Product
32MHz

Voltage Gain
70dB

Power Supply Rejection Ratio (PSRR)
60dB

Max Dual Supply Voltage
8.25V

-3db Bandwidth
60MHz

Min Dual Supply Voltage
2.25V

Length
3mm

Height Seated (Max)
1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5211IYEZ-T13.

EL5211IYEZ-T13 Overview

There is a MSOP case package that contains the instrumentation amplifiers. The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. Upon delivery, op amp ic is packaged in a Tape & Reel (TR) case. We are approaching the 8h termination of the year. In total, there are 8 pins on this op amp ic. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them. 8 pins are located on the operational amplifiers. The input offset voltage is 3mV. The buffer amplifier is capable of operating from a supply current of 5mA . It is recommended to keep the voltage gain at 70dB at all times. This op amp contains 2 circuits. For this linear amplifier to work, the temperature should not be below -40°C. In order to avoid damage to the product, operational amplifiers should only be used at temperatures below 85°C. The operating supply voltage of the buffer op amp is rated at 15V. Under 16.5V is the minimum supply voltage for this electric component. Over 4.5V is a recommended supply voltage for buffer ampsIn order for this electronic part to be conducted successfully, you should use a dual supply voltage of 8.25V.

EL5211IYEZ-T13 Features

8 Pins
70dB voltage gain

EL5211IYEZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5211IYEZ-T13 Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
