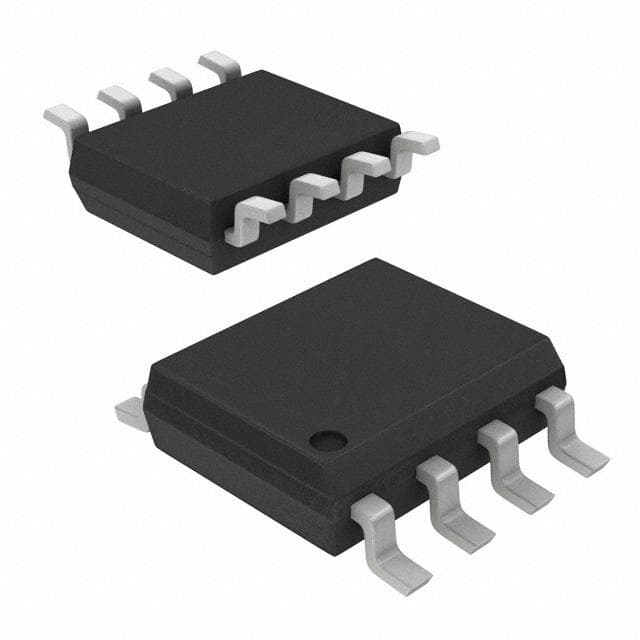

Renesas EL5102ISZ-T13

Manufacturer No:

EL5102ISZ-T13

Manufacturer:

Renesas

Package:

SOIC

Description:

1 Channels 150mA per Channel 2μA 60 dB Instrumentational OP Amps 12V 8 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5102ISZ-T13 information

Renesas EL5102ISZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5102ISZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATE WITH 3V AND 5V SINGLE SUPPLY

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
13.2V

Operating Supply Current
5.2mA

Nominal Supply Current
5.8mA

Slew Rate
4000 V/μs

Common Mode Rejection Ratio
60 dB

Current - Input Bias
2μA

Output Current per Channel
150mA

Input Offset Voltage (Vos)
1mV

Bandwidth
400000 kHz

Voltage Gain
66dB

Power Supply Rejection Ratio (PSRR)
70dB

-3db Bandwidth
400MHz

Dual Supply Voltage
6.6V

Consumer IC Type
VIDEO AMPLIFIER

Length
4.9022mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5102ISZ-T13.

EL5102ISZ-T13 Overview

Packaging for the buffer amplifier is in the form of a SOIC case. There is a Tape & Reel (TR) case that is delivered with the instrumentation amplifiers. A total of 8 terminations have been reported in the past few weeks. Buffer amplifier has a total of 8 pins on it. An 8-pin op amp ic is included in the package. With regards to the offset voltage of the input, buffer amplifier is rated at 1mV. Using a supply current of 5.2mA , this buffer op amp will be able to operate. Keeping the voltage gain at 66dB is the best course of action. 1 channels are available on the instrumentation amplifier. This op amp needs to be operated at a temperature of not less than -40°C degrees Celsius in order to function properly. You should not use op amp above 85°C degrees. The operating supply voltage of the buffer op amp is rated at 12V. Regarding the voltage of the supply, this electrical part can work from a voltage as low as 13.2V, and this is an excellent feature. In order to ensure that the instrumentation amplifier's supply voltage remains above 4.5V, it is recommended to keep it higher. In order to sort customer IC types, use VIDEO AMPLIFIER. Here is an additional benefit of this buffer op amp that you may find helpful: ALSO OPERATE WITH 3V AND 5V SINGLE SUPPLY.

EL5102ISZ-T13 Features

8 Pins
66dB voltage gain

EL5102ISZ-T13 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5102ISZ-T13 Instrumentational OP Amps applications.

single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
