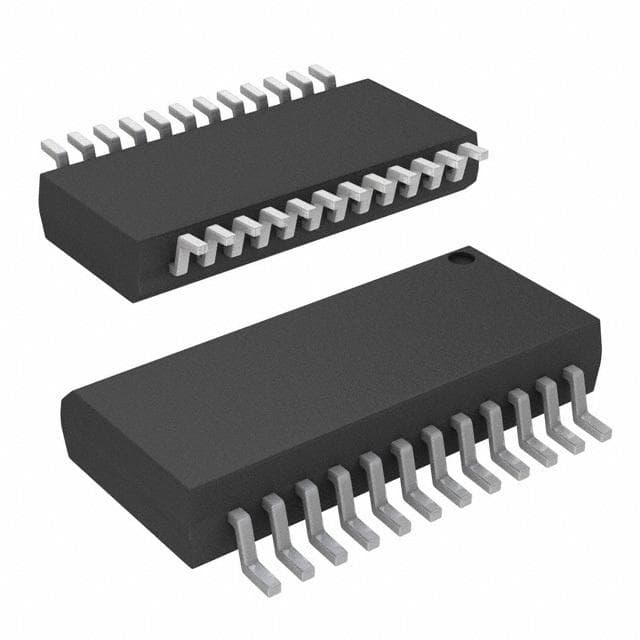

Renesas EL4501IUZ-T13

Manufacturer No:

EL4501IUZ-T13

Manufacturer:

Renesas

Package:

QSOP

Description:

70mA per Channel Instrumentational OP Amps 24 Pins QSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL4501IUZ-T13 information

Renesas EL4501IUZ-T13 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL4501IUZ-T13.

Type
Parameter

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
24

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
24

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Consumer ICs

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
24

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

Number of Circuits
1

Operating Supply Current
10.5mA

Slew Rate
96 V/μs

Output Current per Channel
70mA

-3db Bandwidth
100MHz

Consumer IC Type
CONSUMER CIRCUIT

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL4501IUZ-T13.

Datasheets:

intersil-el4501iuzt13-datasheets-8895.pdf

EL4501IUZ-T13 Overview

There is a QSOP case in which the instrumentation amplifier is packaged. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 24 mark. The total number of pins on linear amplifier is 24. In order to be more specific, this instrumentation amplifier is one of the types of Other Consumer ICs devices. 24 pins are included on the operational amplifiers. It is possible to operate this buffer amplifier from a supply current of 10.5mA . A linear amplifier like this has 1 circuits on it. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used. CONSUMER CIRCUIT sorts consumer ICs by type.
