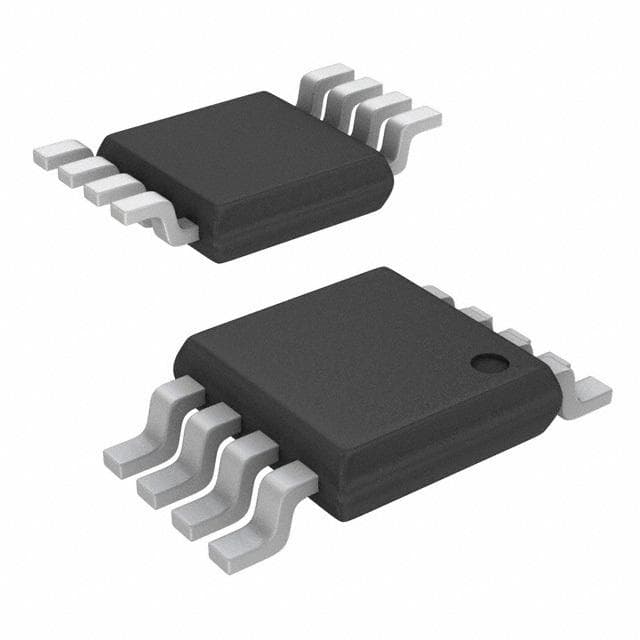

Renesas EL2228CY

Manufacturer No:

EL2228CY

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 180mA per Channel 4.5μA 60 dB Instrumentational OP Amps 1μA 8 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL2228CY information

Renesas EL2228CY technical specifications, attributes, parameters and parts with similar specifications to Renesas EL2228CY.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Published
2002

Number of Terminations
8

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
2

Supply Voltage
5V

Reach Compliance Code
not_compliant

Pin Count
8

JESD-30 Code
R-PDSO-G8

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Channels
2

Operating Supply Current
5mA

Nominal Supply Current
11mA

Slew Rate
65 V/μs

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
60 dB

Current - Input Bias
4.5μA

Input Offset Voltage (Vos)
200μV

Gain Bandwidth Product
40MHz

Neg Supply Voltage-Nom (Vsup)
-5V

Voltage Gain
72dB

Average Bias Current-Max (IIB)
1μA

Gain
1 dB

Max Dual Supply Voltage
12V

-3db Bandwidth
80MHz

Min Dual Supply Voltage
2.5V

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL2228CY.

EL2228CY Overview

It is packaged in an MSOP-case that protects the operational amplifiers from damage. An op amp of this type is a OPERATIONAL AMPLIFIER-type. It is estimated that there will be at least 8 terminations this year. A total of 8 pins are attached to buffer op amp. As a reminder, this buffer op amp should be powered by 5V battery and that the battery should be inserted in the amplifier. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. Op amp ic rates 200μV for input offset voltage. A supply current of 5mA can be used to operate this linear amplifier. There should be no change in the voltage gain at 72dB. There are a total of 2 channels available on the op amps. This instrumentation amplifier cannot operate below -40°C degrees Celsius. You should only use op amp buffer at temperatures that are no higher than 85°C. In order to conduct this part, you will need to provide dual supply voltages of 12V volts.

EL2228CY Features

8 Pins
supply voltage of 5V
72dB voltage gain

EL2228CY Applications

There are a lot of Intersil (Renesas Electronics America)
EL2228CY Instrumentational OP Amps applications.

Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
