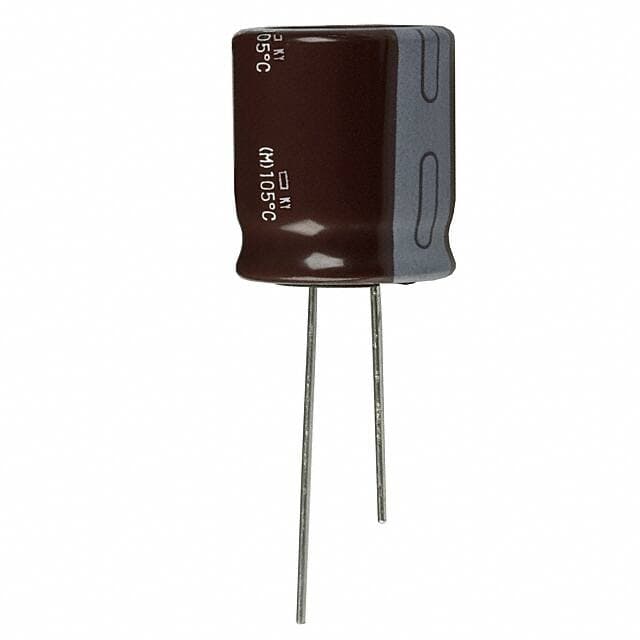

United Chemi-Con EKY-500ELL102MM20S

Manufacturer No:

EKY-500ELL102MM20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 1000?F Capacitor ±20% Bulk Through Hole 2.49A 0.709Dia 18.00mm -40°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-500ELL102MM20S information

United Chemi-Con EKY-500ELL102MM20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-500ELL102MM20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
20

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2004

Size / Dimension
0.709Dia 18.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
General Purpose

Capacitance
1000?F

Voltage - Rated DC
50V

Lead Pitch
7.5mm

ESR (Equivalent Series Resistance)
36mOhm

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Voltage
50V

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
2.49A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
36mOhm

Ripple Current @ Low Frequency
1.494A @ 120Hz

Ripple Current @ High Frequency
2.49A @ 100kHz

Diameter
18mm

Height Seated (Max)
0.787 20.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EKY-500ELL102MM20S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

unitedchemicon-eky500ell102mm20s-datasheets-4484.pdf

unitedchemicon-eky500ell102mm20s-datasheets-4485.pdf

EKY-500ELL102MM20S Overview

With a full charge, the ripple current is 2.49A @ 100kHz.Defining 36mOhm as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 1.494A @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.787 20.00mm.Voltage - Rated DC of 50V controls this capacitor.High efficiency requires the operating temperature to be -40°C~105°C.

EKY-500ELL102MM20S Features

the ripple current is 2.49A @ 100kHz.
the ripple current is 1.494A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C

EKY-500ELL102MM20S Applications

There are a lot of United Chemi-Con
EKY-500ELL102MM20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
