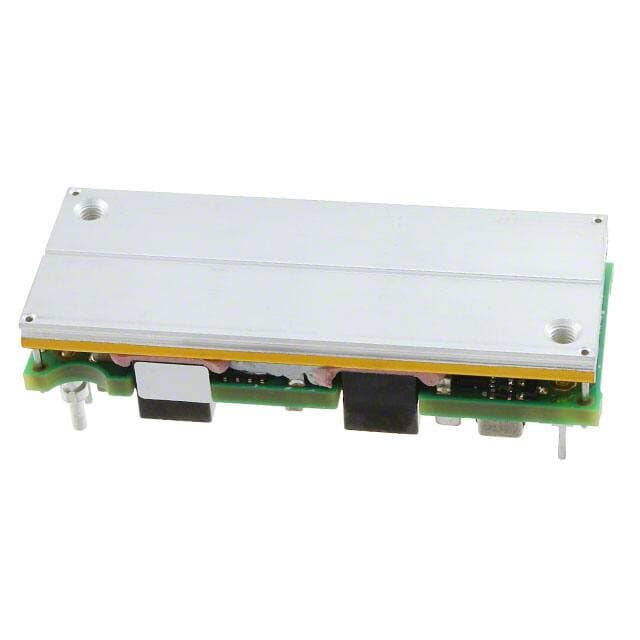

ABB EHHD010A0B41-HZ

Manufacturer No:

EHHD010A0B41-HZ

Manufacturer:

ABB

Package:

8-DIP Module, 1/8 Brick

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EHHD010A0B41-HZ information

ABB EHHD010A0B41-HZ technical specifications, attributes, parameters and parts with similar specifications to ABB EHHD010A0B41-HZ.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Through Hole

Package / Case
8-DIP Module, 1/8 Brick

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
Hammerhead™ EHHD010A0B (120W)

Size / Dimension
2.30Lx0.90W x 0.50 H 58.4mmx22.9mmx12.7mm

Feature
Remote On/Off, OCP, OTP, OVP, UVLO

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Type
Isolated Module

Applications
ITE (Commercial)

Power (Watts)
120W

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Number of Outputs
1

Efficiency
93%

Voltage - Isolation
2.25kV

Voltage - Input (Max)
75V

Voltage - Output 1
12V

Voltage - Input (Min)
18V

Current - Output (Max)
10A

Control Features
Enable, Active Low

Download datasheets and manufacturer documentation for ABB EHHD010A0B41-HZ.

Datasheets:

abbpowerelectronicsinc-ehhd010a0b41z-datasheets-8562.pdf

Description:

The ABB Control DC DC Converter EHHD010A0B41-HZ is a 12V, 120W DC-DC converter designed for use in a wide range of industrial applications. It features a wide input voltage range of 9-36V, a high efficiency of up to 95%, and a wide operating temperature range of -40°C to +85°C. The converter is also designed to meet the requirements of UL/EN/IEC 60950-1 and EN/IEC 62368-1 safety standards.

Features:

• Wide input voltage range of 9-36V
• High efficiency of up to 95%
• Wide operating temperature range of -40°C to +85°C
• Meets UL/EN/IEC 60950-1 and EN/IEC 62368-1 safety standards
• Over-voltage, over-current, and short-circuit protection
• Low ripple and noise
• High power density
• Compact size

Applications:

The ABB Control DC DC Converter EHHD010A0B41-HZ is suitable for a wide range of industrial applications, including:

• Automation and control systems
• Industrial machinery
• Robotics
• Power supplies
• Battery charging systems
• Telecommunications systems
• Lighting systems
• Medical equipment
