Samtec EHF-108-01-F-D-RA
Samtec EHF-108-01-F-D-RA

Samtec EHF-108-01-F-D-RA

Manufacturer No:

EHF-108-01-F-D-RA

Manufacturer:

Samtec

Package:

Description:

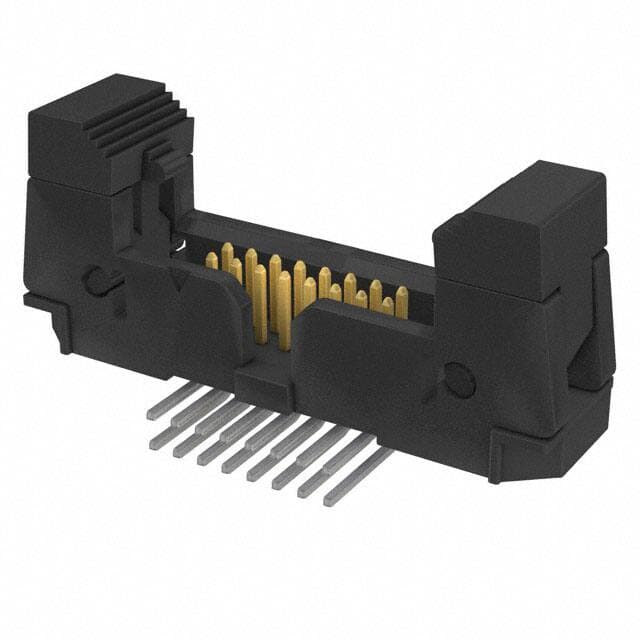

EHF Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP), Glass Filled 16-Position Board to Cable/Wire 0.263 6.67mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EHF-108-01-F-D-RA information

Samtec EHF-108-01-F-D-RA technical specifications, attributes, parameters and parts with similar specifications to Samtec EHF-108-01-F-D-RA.

  • Type
  • Parameter
  • Factory Lead Time
  • 3 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Housing Material
  • Polymer
  • Board Mounting Option
  • SPLIT BOARD LOCK
  • Mounting Option 2
  • LOCKING
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tube
  • Series
  • EHF
  • Published
  • 2003
  • JESD-609 Code
  • e3
  • Feature
  • Keying Slot
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 16
  • Number of Rows
  • 2
  • Gender
  • Male
  • HTS Code
  • 8536.69.40.40
  • Contact Finish - Mating
  • Gold
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Right Angle
  • Depth
  • 13.84mm
  • Insulation Height
  • 0.263 6.67mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.050 1.27mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.050 (1.27mm)
  • Contact Length - Post
  • 0.090 2.29mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.120 3.05mm

Download datasheets and manufacturer documentation for Samtec EHF-108-01-F-D-RA.

Datasheets:

EHF-108-01-F-D-RA Overview


Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the EHF Series.In many ways, its Keying Slot feature makes it more powerful.In this case, the device operates at -55°C~125°C Operating Temperature.

EHF-108-01-F-D-RA Features


EHF series


EHF-108-01-F-D-RA Applications


There are a lot of Samtec Inc.
EHF-108-01-F-D-RA Rectangular Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
