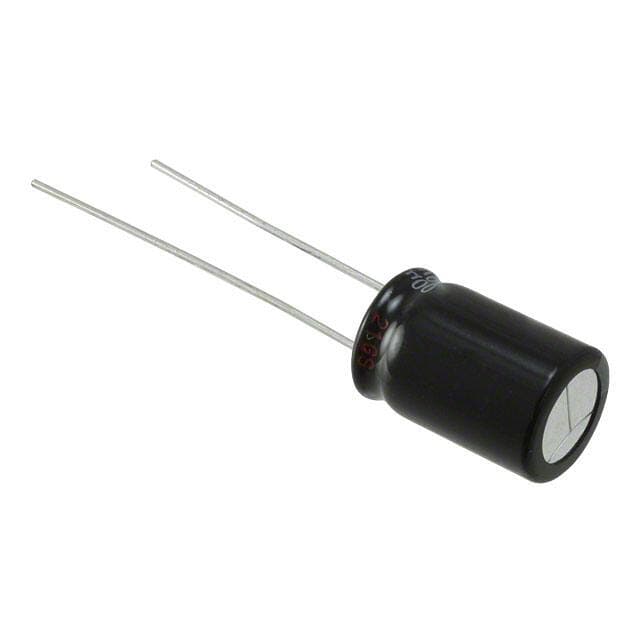

Panasonic EEU-HD1A222

Manufacturer No:

EEU-HD1A222

Manufacturer:

Panasonic

Package:

Radial, Can

Description:

HD 2200μF Capacitor ±20% Bulk Through Hole 760mA 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EEU-HD1A222 information

Panasonic EEU-HD1A222 technical specifications, attributes, parameters and parts with similar specifications to Panasonic EEU-HD1A222.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
PCB, Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Number of Pins
2

Dielectric Material
ALUMINUM (WET)

Lifetime @ Temp.
2000 Hrs @ 105°C

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
HD

Published
2011

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
General Purpose

Capacitance
2200μF

Voltage - Rated DC
10V

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 μm

Voltage
10V

Ripple Current
760mA

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
760mA @ 120Hz

Ripple Current @ High Frequency
874mA @ 100kHz

Lead/Base Style
Straight

Ripple Current (AC)
760mA

Features
General Purpose

Diameter
10mm

Height
16mm

Height Seated (Max)
0.689 17.50mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Panasonic EEU-HD1A222.

Datasheets:

panasonicelectroniccomponents-eeuhd1v472-datasheets-1940.pdf

panasonicelectroniccomponents-eeuhd1v472-datasheets-1941.pdf

EEU-HD1A222 Overview

At full charge, the ripple current is 874mA @ 100kHz.The ripple current is 760mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.689 17.50mm.The capacitor operates at a voltage of 10V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C.

EEU-HD1A222 Features

the ripple current is 874mA @ 100kHz.
the ripple current is 760mA @ 120Hz.
voltage - Rated DC of 10V
an operating temperature of -55°C~105°C

EEU-HD1A222 Applications

There are a lot of Panasonic Electronic Components
EEU-HD1A222 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
