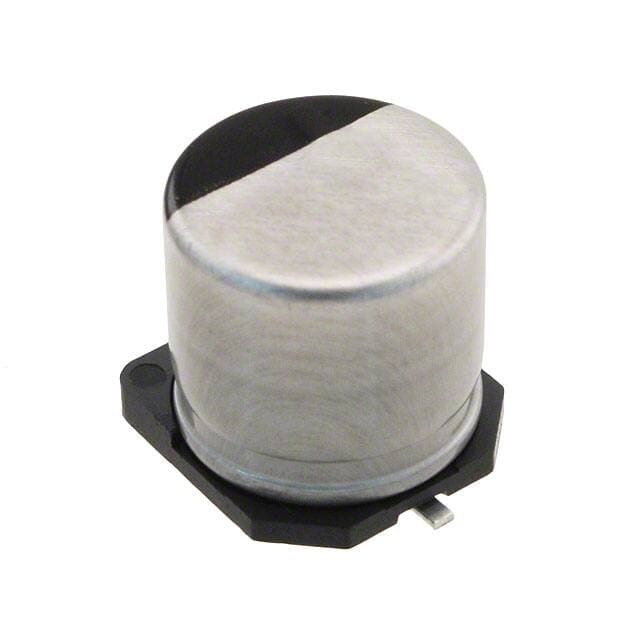

Panasonic EEE-TP1V221AP
Panasonic EEE-TP1V221AP

Panasonic EEE-TP1V221AP

Manufacturer No:

EEE-TP1V221AP

Manufacturer:

Panasonic

Package:

Radial, Can - SMD

Description:

TP 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 500mA 0.394Dia 10.00mm -40°C~125°C Polar 4.6mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EEE-TP1V221AP information

Panasonic EEE-TP1V221AP technical specifications, attributes, parameters and parts with similar specifications to Panasonic EEE-TP1V221AP.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • PCB, Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • TP
  • Published
  • 2008
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • Automotive, High Temperature Reflow
  • Capacitance
  • 220?F
  • Lead Pitch
  • 4.6mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 150mOhm
  • Lead Diameter
  • 900 ?m
  • Size Code
  • 4141
  • Voltage
  • 35V
  • Lifetime @ Temp
  • 3000 Hrs @ 125°C
  • Leakage Current
  • 77?A
  • Ripple Current
  • 500mA
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Impedance
  • 150mOhm
  • Ripple Current @ Low Frequency
  • 325mA @ 120Hz
  • Ripple Current @ High Frequency
  • 500mA @ 100kHz
  • Dissipation Factor
  • 0.16 %
  • Ripple Current (AC)
  • 500mA
  • Diameter
  • 10mm
  • Height
  • 10.2mm
  • Height Seated (Max)
  • 0.402 10.20mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Panasonic EEE-TP1V221AP.

Datasheets:

PCN Packaging:

EEE-TP1V221AP Overview


As far as the ripple current is concerned, it is 500mA @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 150mOhm needs to be provided to fully play its function.As far as the ripple current is concerned, it is 325mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.402 10.20mm.It operates from a 0.16 % dissipation factor.This capacitor operates from a voltage - Rated DC of 35V.The operating temperature should be maintained at -40°C~125°C for high efficiency.
