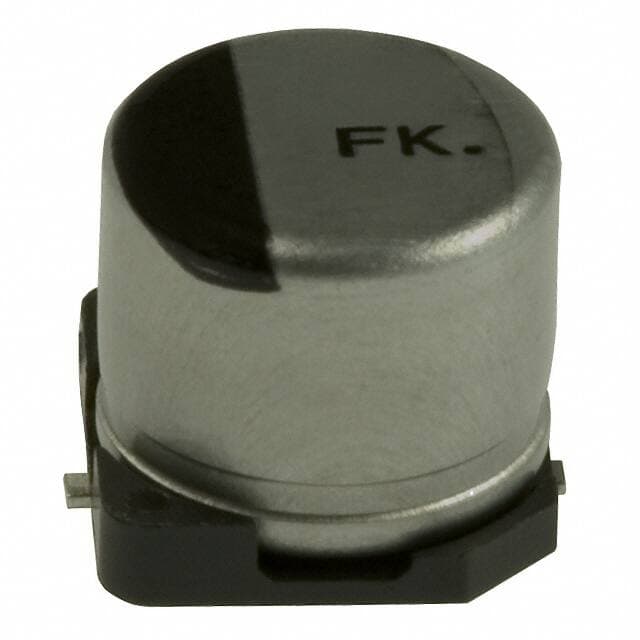

Panasonic EEE-FK1V330AP
Panasonic EEE-FK1V330AP

Panasonic EEE-FK1V330AP

Manufacturer No:

EEE-FK1V330AP

Manufacturer:

Panasonic

Package:

Radial, Can - SMD

Description:

FK 33?F Capacitor ±20% Tape & Reel (TR) Surface Mount 240mA 0.248Dia 6.30mm -55°C~105°C Polar 1.8mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EEE-FK1V330AP information

Panasonic EEE-FK1V330AP technical specifications, attributes, parameters and parts with similar specifications to Panasonic EEE-FK1V330AP.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Contact Plating
  • Tin
  • Mount
  • PCB, Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Surface Mount Land Size
  • 0.260Lx0.260W 6.60mmx6.60mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • FK
  • Published
  • 2006
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Applications
  • Automotive, High Temperature Reflow
  • Capacitance
  • 33?F
  • Voltage - Rated AC
  • 35V
  • Lead Pitch
  • 1.8mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Length
  • 2.6mm
  • ESR (Equivalent Series Resistance)
  • 360mOhm
  • Voltage
  • 35V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 11.5?A
  • Ripple Current
  • 240mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Impedance
  • 360mOhm
  • Ripple Current @ Low Frequency
  • 156mA @ 120Hz
  • Ripple Current @ High Frequency
  • 240mA @ 100kHz
  • Dissipation Factor
  • 0.12 %
  • Ripple Current (AC)
  • 240mA
  • Diameter
  • 6.3mm
  • Height
  • 5.8mm
  • Height Seated (Max)
  • 0.240 6.10mm
  • Width
  • 6.6mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Panasonic EEE-FK1V330AP.

Datasheets:

PCN Packaging:

EEE-FK1V330AP Overview


In terms of ripple current, it is 240mA @ 100kHz at full charge.In order for 360mOhm to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 156mA @ 120Hz.Sitting height (Max) should not exceed 0.240 6.10mm.Based on a dissipation factor of 0.12 %, it operates.Voltage - Rated DC of 35V is required to operate this capacitor.The capacitor operates at a voltage of 35V volts.It is recommended to maintain the operating temperature at -55°C~105°C in order to maximize efficiency.

EEE-FK1V330AP Features


the ripple current is 240mA @ 100kHz.
the ripple current is 156mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C


EEE-FK1V330AP Applications


There are a lot of Panasonic Electronic Components
EEE-FK1V330AP applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
