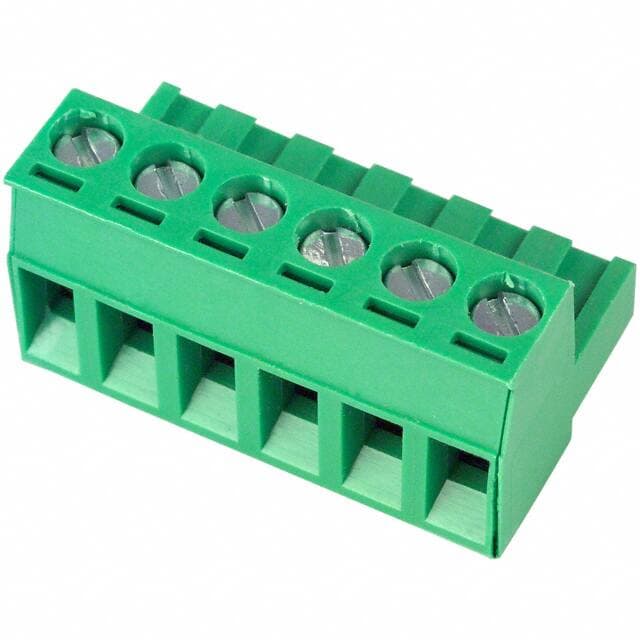

On-Shore ED950/6
On-Shore ED950/6

On-Shore ED950/6

Manufacturer No:

ED950/6

Manufacturer:

On-Shore

Package:

Description:

Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets ED950 Polyamide (PA), Nylon Copper

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED950/6 information

On-Shore ED950/6 technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED950/6.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Copper
  • Contact Plating
  • Tin
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED950
  • Feature
  • Retention Latches (Non-Wire Side)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Type
  • Plug, Female Sockets
  • Number of Positions
  • 6
  • Color
  • Green
  • Number of Rows
  • 1
  • Additional Feature
  • STANDARD: UL 94V-0, PA
  • Pitch
  • 0.197 5.00mm
  • Insulation Height
  • 0.591 15.00mm
  • Termination Style
  • Screw
  • Lead Pitch
  • 5mm
  • Voltage
  • 300V
  • Number of Levels
  • 1
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 12 AWG
  • Voltage - UL
  • 300V
  • Number of Decks
  • 1
  • Wire Gauge or Range - AWG
  • 12-22 AWG
  • Torque - Screw
  • 0.5 Nm (4.4 Lb-In)
  • Number of Ways
  • 6
  • Safety Approval
  • CUL; UL; VDE
  • Plug Wire Entry
  • 180°
  • Wire Gauge or Range - mm²
  • 2.5mm2
  • Wire Strip Length
  • 6mm
  • Screw Size
  • M3
  • Height
  • 15mm
  • Length
  • 30mm
  • Width
  • 17.3mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for On-Shore ED950/6.

Datasheets:

ED950/6 Overview


This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the ED950 Series.To name a few, there is also STANDARD: UL 94V-0, PA.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.Part Free Hanging is mounted to the part.As a result, the device runs at -30°C~105°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.

ED950/6 Features


ED950 series


ED950/6 Applications


There are a lot of On Shore Technology Inc.
ED950/6 Terminal Blocks applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
