On-Shore ED700/3
On-Shore ED700/3

On-Shore ED700/3

Manufacturer No:

ED700/3

Manufacturer:

On-Shore

Package:

Description:

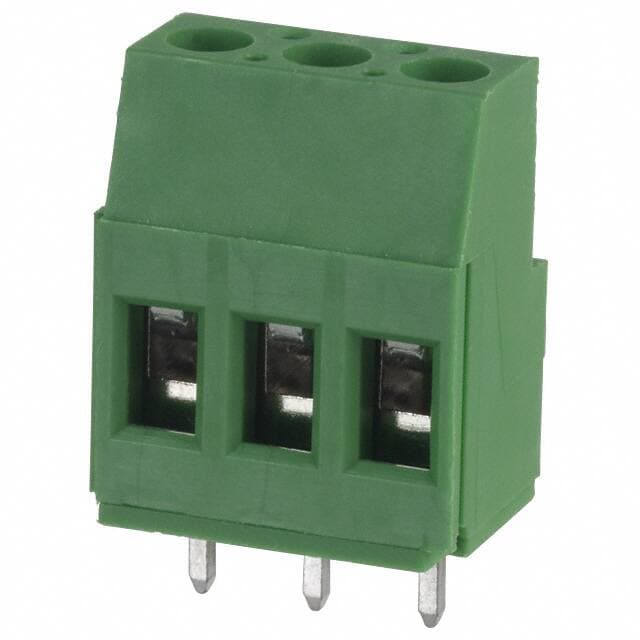

0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG ED700

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED700/3 information

On-Shore ED700/3 technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED700/3.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Brass
  • Contact Plating
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 3
  • Housing Material
  • Polyamide (PA), Nylon
  • Contact Material - Plating
  • Brass
  • Clamp Material - Plating
  • Copper
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED700
  • Feature
  • Interlocking (Side)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Number of Positions
  • 3
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Green
  • Number of Rows
  • 1
  • Pitch
  • 0.197 5.00mm
  • Lead Pitch
  • 10mm
  • Housing Color
  • Green
  • Voltage
  • 300V
  • Plating
  • Copper
  • Number of Levels
  • 1
  • Current
  • 20A
  • Wire Gauge (Max)
  • 30 AWG
  • Wire Gauge (Min)
  • 12 AWG
  • Torque - Screw
  • 0.5 Nm (4.4 Lb-In)
  • Positions Per Level
  • 3
  • Mating Orientation
  • Horizontal with Board
  • Wire Termination
  • Screw - Rising Cage Clamp
  • Screw Thread
  • M3
  • Number of Positions Per Level
  • 3
  • Height
  • 19mm
  • Length
  • 15.6mm
  • Width
  • 10.5mm
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for On-Shore ED700/3.

Datasheets:

ED700/3 Overview


This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ED700 Series.There are 3 pins on the device.If the temperature is below 105°C, it's best to use it.-30°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.

ED700/3 Features


ED700 series


ED700/3 Applications


There are a lot of On Shore Technology Inc.
ED700/3 Terminal Blocks applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
