On-Shore ED130/2DS
On-Shore ED130/2DS

On-Shore ED130/2DS

Manufacturer No:

ED130/2DS

Manufacturer:

On-Shore

Package:

Description:

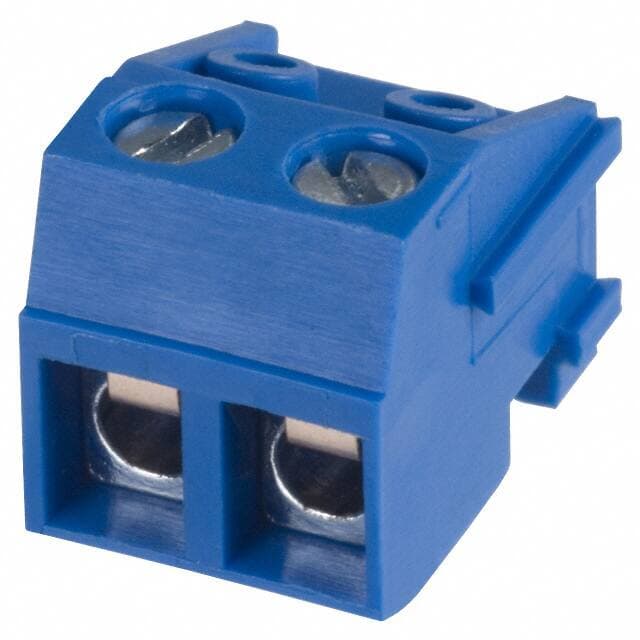

Bulk 0.197 5.00mm Blue 1 Levels Free Hanging (In-Line) Plug for Unshrouded Header ED130 Polyamide (PA), Nylon Copper Beryllium

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED130/2DS information

On-Shore ED130/2DS technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED130/2DS.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Copper Beryllium
  • Contact Plating
  • Tin
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED130
  • Feature
  • Interlocking (Side)
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Type
  • Plug for Unshrouded Header
  • Number of Positions
  • 2
  • Color
  • Blue
  • Number of Rows
  • 1
  • Additional Feature
  • STANDARD: UL 94V-0, PA
  • Pitch
  • 0.197 5.00mm
  • Insulation Height
  • 0.425 10.80mm
  • Termination Style
  • Screw
  • Lead Pitch
  • 5mm
  • Voltage
  • 300V
  • Number of Levels
  • 1
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 14 AWG
  • Voltage - UL
  • 300V
  • Number of Decks
  • 1
  • Wire Gauge or Range - AWG
  • 14-22 AWG
  • Torque - Screw
  • 0.4 Nm (3.5 Lb-In)
  • Number of Ways
  • 2
  • Safety Approval
  • CUL; UL; VDE
  • Plug Wire Entry
  • 90°
  • Wire Gauge or Range - mm²
  • 1.5mm2
  • Wire Strip Length
  • 6mm
  • Screw Size
  • M2.6
  • Height
  • 10.8mm
  • Length
  • 10mm
  • Width
  • 13.5mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for On-Shore ED130/2DS.

Datasheets:

ED130/2DS Overview


This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the ED130 Series.To name a few, there is also STANDARD: UL 94V-0, PA.There are a number of advantages to its Interlocking (Side) feature.Part Free Hanging is mounted to the part.As a result, the device runs at -30°C~105°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug for Unshrouded Header products.

ED130/2DS Features


ED130 series


ED130/2DS Applications


There are a lot of On Shore Technology Inc.
ED130/2DS Terminal Blocks applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
