On-Shore ED120/2DS
On-Shore ED120/2DS

On-Shore ED120/2DS

Manufacturer No:

ED120/2DS

Manufacturer:

On-Shore

Package:

Description:

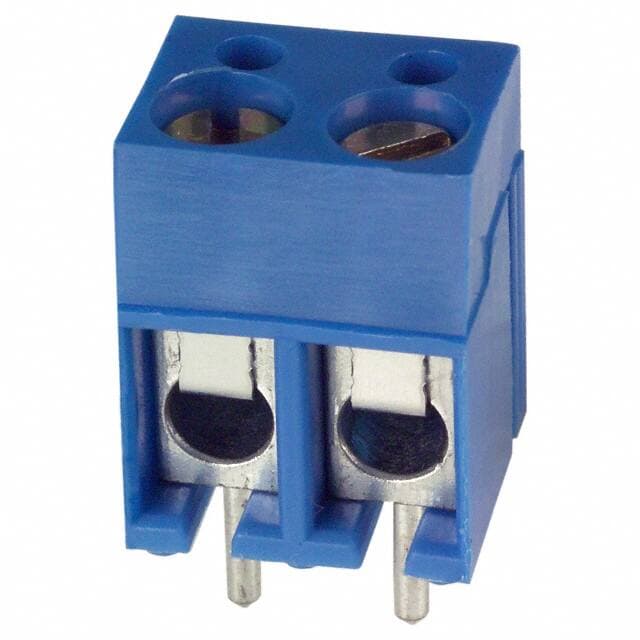

0.200 5.08mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED120/DS

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED120/2DS information

On-Shore ED120/2DS technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED120/2DS.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Brass
  • Contact Plating
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 2
  • Housing Material
  • Polyamide (PA), Nylon
  • Contact Material - Plating
  • Brass
  • Clamp Material - Plating
  • Steel, Stainless
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED120/DS
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Number of Positions
  • 2
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Blue
  • Number of Rows
  • 1
  • Pitch
  • 0.200 5.08mm
  • Lead Pitch
  • 5.08mm
  • Housing Color
  • Blue
  • Wire Gauge
  • 14-22 AWG
  • Plating
  • Steel
  • Number of Levels
  • 1
  • Current
  • 15A
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 14 AWG
  • Torque - Screw
  • 0.5 Nm (4.4 Lb-In)
  • Positions Per Level
  • 2
  • Mating Orientation
  • Horizontal with Board
  • Wire Termination
  • Screw - Leaf Spring, Wire Guard
  • Screw Thread
  • M3
  • Number of Positions Per Level
  • 2
  • Height
  • 13mm
  • Length
  • 10.2mm
  • Width
  • 9mm
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for On-Shore ED120/2DS.

Datasheets:

ED120/2DS Overview


Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the ED120/DS Series, it is one of the most popular.A device with a 2 pin configuration is equipped with the device.It works best at below 105°C.The device must be operated at a temperature of -30°C.Through Hole is the mounting point for the part.-30°C~105°C Operating Temperature is used by the device.

ED120/2DS Features


ED120/DS series


ED120/2DS Applications


There are a lot of On Shore Technology Inc.
ED120/2DS Terminal Blocks applications.


  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
