Manufacturer No:

ED114/7DS

Manufacturer:

On-Shore

Package:

Description:

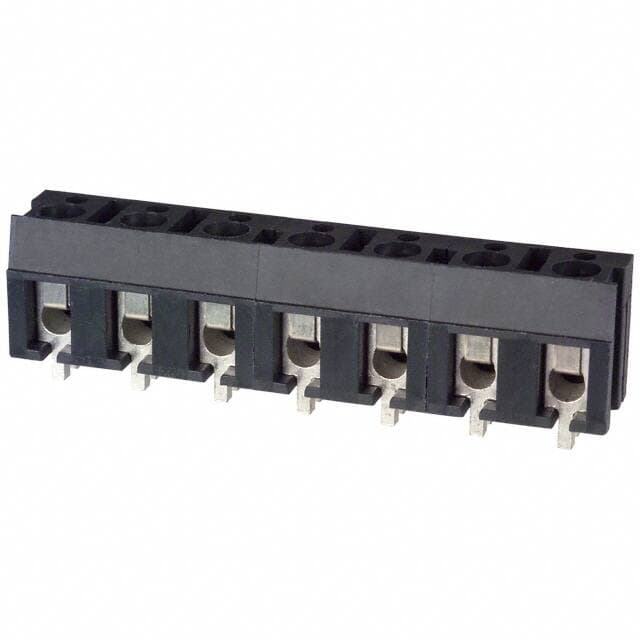

0.295 7.50mm Gray Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 12-22 AWG ED114/DS

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED114/7DS information

On-Shore ED114/7DS technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED114/7DS.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 7
  • Housing Material
  • Polyamide (PA), Nylon
  • Contact Material - Plating
  • Brass
  • Clamp Material - Plating
  • Steel, Stainless
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED114/DS
  • Feature
  • Interlocking (Side)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Number of Positions
  • 7
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Gray
  • Number of Rows
  • 1
  • Pitch
  • 0.295 7.50mm
  • Lead Pitch
  • 7.5mm
  • Housing Color
  • Grey
  • Wire Gauge
  • 12-22 AWG
  • Plating
  • Steel
  • Number of Levels
  • 1
  • Current
  • 15A
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 12 AWG
  • Torque - Screw
  • 0.8 Nm (7.1 Lb-In)
  • Positions Per Level
  • 7
  • Mating Orientation
  • Horizontal with Board
  • Wire Termination
  • Screw - Leaf Spring, Wire Guard
  • Screw Thread
  • M3
  • Number of Positions Per Level
  • 7
  • Height
  • 12.5mm
  • Length
  • 52.5mm
  • Width
  • 9mm
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for On-Shore ED114/7DS.

Datasheets:

ED114/7DS Overview


The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the ED114/DS Series, it belongs to the range of products of that series.7 pins are on the device.A temperature below 105°C is best for using it.The device must run at -30°C degrees.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.-30°C~105°C Operating Temperature is the default operating temperature for the device.
