On-Shore ED1100/14
On-Shore ED1100/14

On-Shore ED1100/14

Manufacturer No:

ED1100/14

Manufacturer:

On-Shore

Package:

Description:

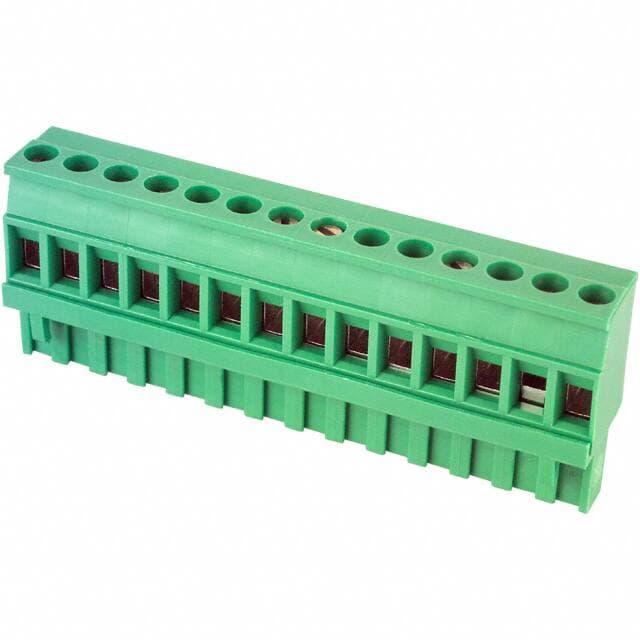

Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets ED1100 Polyamide (PA), Nylon Copper Tin Alloy

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED1100/14 information

On-Shore ED1100/14 technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED1100/14.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Copper Tin Alloy
  • Contact Plating
  • Tin
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Number of Pins
  • 14
  • Housing Material
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED1100
  • Feature
  • Retention Latches (Wire Side)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Type
  • Plug, Female Sockets
  • Number of Positions
  • 14
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Green
  • Number of Rows
  • 1
  • Pitch
  • 0.197 5.00mm
  • Insulation Height
  • 1.043 26.50mm
  • Termination Style
  • Screw
  • Lead Pitch
  • 5mm
  • Voltage
  • 300V
  • Number of Levels
  • 1
  • Current
  • 15A
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 10 AWG
  • Voltage - UL
  • 300V
  • Wire Gauge or Range - AWG
  • 10-22 AWG
  • Current - UL
  • 15A
  • Torque - Screw
  • 0.5 Nm (4.4 Lb-In)
  • Positions Per Level
  • 14
  • Plug Wire Entry
  • 90°
  • Wire Gauge or Range - mm²
  • 2.5mm2
  • Wire Strip Length
  • 7mm
  • Number of Positions Per Level
  • 14
  • Screw Size
  • M3
  • Height
  • 26.5mm
  • Length
  • 70mm
  • Width
  • 12.5mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for On-Shore ED1100/14.

Datasheets:

ED1100/14 Overview


The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the ED1100 Series, it belongs to the range of products of that series.14 pins are on the device.A temperature below 105°C is best for using it.The device must run at -30°C degrees.A number of features make the Retention Latches (Wire Side) feature more powerful.Free Hanging represents the mounting point for the part.-30°C~105°C Operating Temperature is the default operating temperature for the device.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

ED1100/14 Features


ED1100 series


ED1100/14 Applications


There are a lot of On Shore Technology Inc.
ED1100/14 Terminal Blocks applications.


  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Refrigeration control

User Guide
