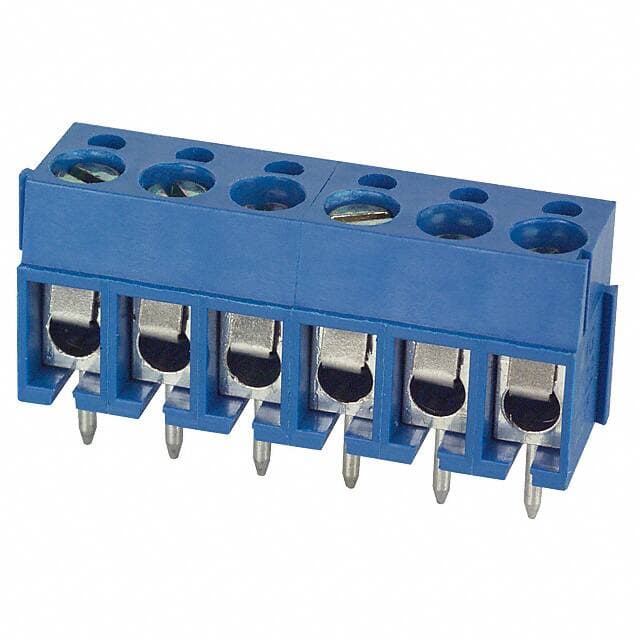

On-Shore ED100/6DS
On-Shore ED100/6DS

On-Shore ED100/6DS

Manufacturer No:

ED100/6DS

Manufacturer:

On-Shore

Package:

Description:

0.197 5.00mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED100/DS

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ED100/6DS information

On-Shore ED100/6DS technical specifications, attributes, parameters and parts with similar specifications to On-Shore ED100/6DS.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Brass
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Number of Pins
  • 6
  • Housing Material
  • Polyamide (PA), Nylon
  • Clamp Material - Plating
  • Steel, Stainless
  • Operating Temperature
  • -30°C~105°C
  • Packaging
  • Bulk
  • Series
  • ED100/DS
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Screw
  • Number of Positions
  • 6
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -30°C
  • Color
  • Blue
  • Number of Rows
  • 1
  • Pitch
  • 0.197 5.00mm
  • Lead Pitch
  • 5mm
  • Housing Color
  • Blue
  • Wire Gauge
  • 14-22 AWG
  • Voltage
  • 300V
  • Number of Levels
  • 1
  • Current
  • 15A
  • Wire Gauge (Max)
  • 22 AWG
  • Wire Gauge (Min)
  • 14 AWG
  • Torque - Screw
  • 0.5 Nm (4.4 Lb-In)
  • Positions Per Level
  • 6
  • Mating Orientation
  • Horizontal with Board
  • Wire Termination
  • Screw - Leaf Spring, Wire Guard
  • Screw Thread
  • M3
  • Number of Positions Per Level
  • 6
  • Height
  • 12.5mm
  • Length
  • 30mm
  • Width
  • 9mm
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for On-Shore ED100/6DS.

Datasheets:

ED100/6DS Overview


Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the ED100/DS Series, it can be found in this category.It has 6 pins.Temperatures below 105°C are best for using it.There's a minimum temperature of -30°C for this device.In this case, Through Hole mounts the part.The device is operating at -30°C~105°C Operating Temperature.
