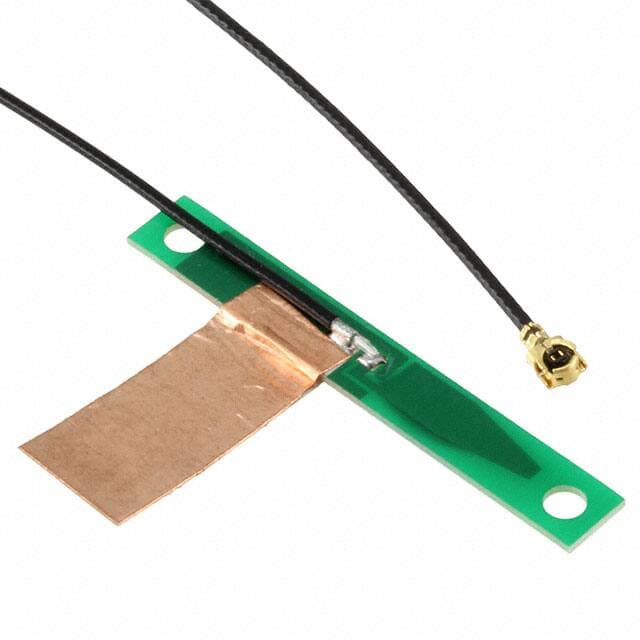

Siretta Ltd ECHO28/0.5M/IPEX/S/S/30

Manufacturer No:

ECHO28/0.5M/IPEX/S/S/30

Manufacturer:

Package:

Description:

1 Bands PCB Trace UHF 1GHz~2GHz Surface Mount U.FL (UMCC), IPEX MHF1 2.4GHz 2dBi Bulk 0.004 0.10mm Bluetooth, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ECHO28/0.5M/IPEX/S/S/30 information

Siretta Ltd ECHO28/0.5M/IPEX/S/S/30 technical specifications, attributes, parameters and parts with similar specifications to Siretta Ltd ECHO28/0.5M/IPEX/S/S/30.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Packaging
Bulk

Series
ECHO 28

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
U.FL (UMCC), IPEX MHF1

Applications
Bluetooth, WLAN, Zigbee?

Frequency
2.5GHz

Gain
2dBi

Frequency Range
2.4GHz~2.5GHz

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
PCB Trace

VSWR
1.92

Number of Bands
1

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
2.4GHz

Height (Max)
0.004 0.10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Siretta Ltd ECHO28/0.5M/IPEX/S/S/30.

Datasheets:

sirettaltd-echo2805mipexss30-datasheets-3259.pdf

siretta-echo2805mipexss30-datasheets-0020.pdf

ECHO28/0.5M/IPEX/S/S/30 Overview

As it has a Surface Mount value, it can be used for general RF Antennas.This is a Antenna RF from the ECHO 28 series.There is a Bulk solid enclosure around the RF modulator.

ECHO28/0.5M/IPEX/S/S/30 Features

With Surface Mount
ECHO 28 series

ECHO28/0.5M/IPEX/S/S/30 Applications

There are a lot of Siretta Ltd
ECHO28/0.5M/IPEX/S/S/30 RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
