Manufacturer No:

ECC18DRXN

Manufacturer:

Sullins Connector Solutions

Package:

Description:

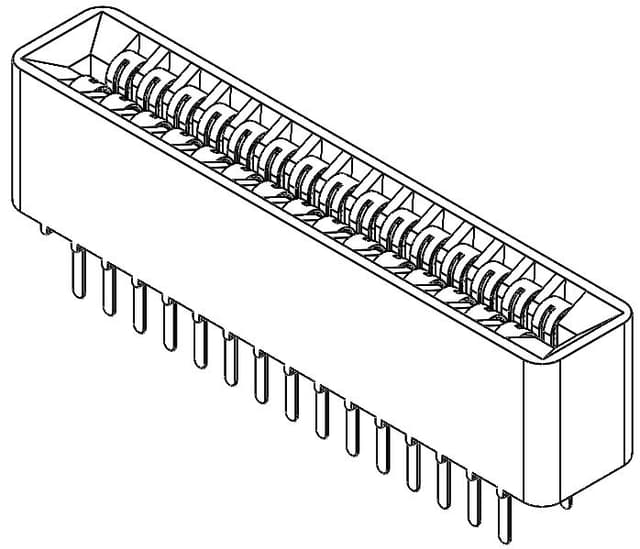

Description: Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ECC18DRXN information

Sullins Connector Solutions ECC18DRXN technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions ECC18DRXN.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Body Breadth
  • 0.33 inch
  • Body Depth
  • 0.431 inch
  • Body Length
  • 2.675 inch
  • Connector Type
  • CARD EDGE CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • MATTE TIN OVER NICKEL
  • Contact Material
  • NOT SPECIFIED
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 30 mΩ
  • Contact Style
  • BELLOWED TYPE
  • Filter Feature
  • NO
  • Insulator Material
  • POLYBUTYLENE TEREPHTHALATE
  • JESD-609 Code
  • e3
  • Mating Contact Pitch
  • 0.1 inch
  • Mixed Contacts
  • NO
  • Mounting Option 1
  • LOCKING
  • Mounting Style
  • STRAIGHT
  • Mounting Type
  • BOARD
  • Number Of PCB Rows
  • 2
  • Number of Rows Loaded
  • 2
  • Operating Temperature-Max
  • 150 °C
  • Operating Temperature-Min
  • -65 °C
  • Plating Thickness
  • 30u inch
  • Rated Current (Signal)
  • 3 A
  • Reference Standard
  • UL
  • Terminal Length
  • 0.185 inch
  • Terminal Pitch
  • 2.54 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 36

Download datasheets and manufacturer documentation for Sullins Connector Solutions ECC18DRXN.

Datasheets:

Environmental Information:

ECC18DRXN Overview


Packaging was done per Tray's specs.Recommended mounting type is Through Hole.This device is connected via the connector socket Full Bellows.

ECC18DRXN Features




ECC18DRXN Applications


There are a lot of Sullins Connector Solutions
ECC18DRXN Edgeboard Connectors applications.


  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
  • Communication Systems
