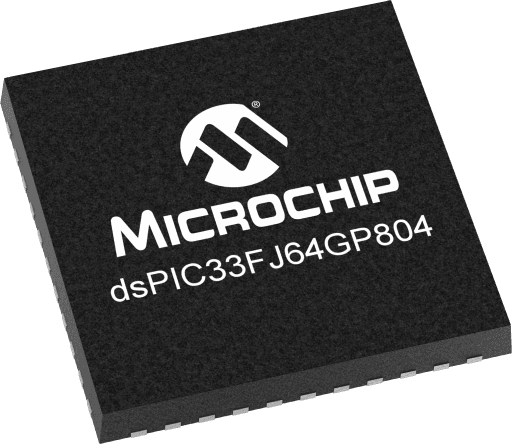

Microchip DSPIC33FJ64GP804-I/PT

Manufacturer No:

DSPIC33FJ64GP804-I/PT

Manufacturer:

Microchip

Package:

44-TQFP

Description:

40 MIPS, 64KB Flash, 16KB RAM, 44 pins, DAC, CAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33FJ64GP804-I/PT information

Microchip DSPIC33FJ64GP804-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ64GP804-I/PT.

Type
Parameter

CPU Type
dsPIC® DSC

CPU Speed Max MHz (megahertz)
40

Program Memory Size (KB)
64

Multiple Flash Panels
False

Direct Memory Access (DMA) Channels
8

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
125

Operation Voltage Min.(V)
3

Operation Voltage Max.(V)
3.6

Pin Count
44

Low Power
No

Number of Comparators
2

ADC Modules
1

ADC Channels
13

ADC Resolution Max
12

ADC Sampling Rate (ksps)
1100

Number of DACs
2

DAC outputs
2

Max DAC Resolution (bits)
16

Hardware RTCC
No

Motor Control PWM Channels
0

SMPS PWM Channels
0

Number of PWM Time Bases
2

Output Compare Channels
4

Number of CAN Modules
1

Type of CAN module Max
CAN

Crypto Engine
No

Quadrature Encoder Interface (QEI)
0

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
0

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33FJ64GP804-I/PT.

•dsPIC33Fs are designed to execute digital filter algorithms and high-speed precision digital control loops, ideal for applications that need to perform under pressure •General Purpose Digital Signal Controllers (DSCs) with advanced analog and seamless migration options to PIC24F, PIC24H MCUs and dsPIC30F DSCs

Up to 40 MIPS operation (at 3.0-3.6V)
3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

Modified Harvard architecture
C compiler optimized instruction set
24-bit wide instructions, 16-bit wide data path
Linear program memory addressing up to 4M instruction words
Linear data memory addressing up to 64 Kbytes
Two 40-bit accumulators with rounding and saturation options
Indirect, Modulo and Bit-reversed addressing modes
16 x 16 fractional/integer multiply operations
32/16 and 16/16 divide operations
Single-cycle multiply and accumulate (MAC) with accumulator write back and dual data fetch
Single-cycle MUL plus hardware divide
Up to ±16-bit shifts for up to 40-bit data
On-chip Flash and SRAM

8-channel hardare DMA
Up to 2 Kbytes dual ported DMA buffer area (DMA RAM) to store data transferred via DMA
Most peripherals support DMA

Up to five 16-bit and up to two 32-bit Timers/Counters
One timer runs as a Real-Time Clock with an external 32.768 kHz oscillator
Input Capture (up to four channels) with Capture on up, down or both edges
16-bit capture input functions
4-deep FIFO on each capture
Output Compare (up to four channels) with Single or Dual 16-bit Compare mode and 16-bit Glitchless PWM mode
Hardware Real-Time Clock/Calendar (RTCC)

5-cycle latency
118 interrupt vectors
Up to 49 available interrupt sources
Up to three external interrups
Seven programmable priority levels
Five processor exceptions

Peripheral pin Select functionality
Up to 35 programmable digital I/O pins
Wake-up/Interrupt-on-Change for up to 21 pins
Output pins can drive from 3.0V to 3.6V
Up to 5V output with open drain configuration
All digital input pins are 5V tolerant
4 mA sink on all I/O pins

Flexible clock options: External, crystal, resonator and internal RC
Fully integrated Phase-Locked Loop (PLL)
Extremely low jitter PLL
Power-up Timer
Oscillator Start-up Timer/Stabilizer
Watchdog Timer with its own RC oscillator
Fail-Safe Clock Monitor
Reset by multiple sources

On-chip 2.5V voltage regulator
Switch between clock sources in real time
Idle, Sleep, and Doze modes with fast wake-up

10-bit, 11 Msps or 12-bit, 500 Ksps conversion:
Two and four simultaneous samples (10-bit ADC)
Up to 13 input channels with auto-scanning
Conversion start can be manual or synchronized with one of four trigger sources
Conversion possible in Sleep mode
±2 LSb max integral nonlinearity
±1 LSb max differential nonlinearity

Two analog comparators with programmable input/output configuration
4-bit DAC with two ranges for analog comparators
16-bit dual channel 100 Ksps audio DAC

Codec interface
Supports I2S and AC.97 protocols
Up to 16-bit data words, up to 16 words per frame
4-word deep TX and RX buffers

4-wire SPI (up to two modules) with I/O interface to simple codecs
I2C™ with Full Multi-Master Slave mode support, slave address masking, 7-bit and 10-bit addressing, integrated signal conditioning and bus collision detection
UART (up to two modules) with LIN bus support, IrDA® and hardware flow control with CTS and RTS
Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
Parallel Master Slave Port (PMP/EPSP)
Programmable Cyclic Redundancy Check (CRC)

In-circuit and in-application programming
Two program breakpoints
Trace and run-time watch
