Manufacturer No:

DSPIC33FJ12MC202-I/ML

Manufacturer:

Microchip

Package:

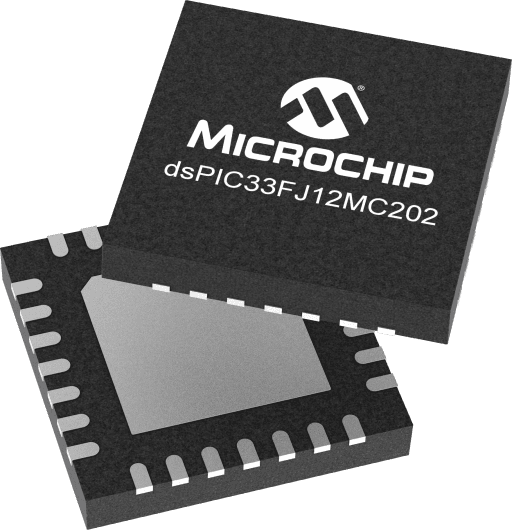

28-VQFN Exposed Pad

Description:

40 MIPS, 12KB Flash, 1KB RAM, 28 pins, Motor Control

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33FJ12MC202-I/ML information

Microchip DSPIC33FJ12MC202-I/ML technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ12MC202-I/ML.

  • Type
  • Parameter
  • CPU Type
  • dsPIC® DSC
  • CPU Speed Max MHz (megahertz)
  • 40
  • Program Memory Size (KB)
  • 12
  • Multiple Flash Panels
  • False
  • Direct Memory Access (DMA) Channels
  • 0
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 125
  • Operation Voltage Min.(V)
  • 3
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 28
  • Low Power
  • No
  • Number of Comparators
  • 0
  • ADC Modules
  • 1
  • ADC Channels
  • 6
  • ADC Resolution Max
  • 12
  • ADC Sampling Rate (ksps)
  • 1100
  • Number of DACs
  • 0
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 0
  • Hardware RTCC
  • No
  • Motor Control PWM Channels
  • 8
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 2
  • Output Compare Channels
  • 4
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 1
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33FJ12MC202-I/ML.

Errata:

Application Notes:

Reference Manual:

Supporting Collateral:

Programming Specifications:

Legacy Collaterals:

Brochures:

Data Sheets:

Miscellaneous:

User Guide:

The dsPIC33FJ12MC202 Digital Signal Controller (DSC) devices contain extensive Digital Signal Processor (DSP) functionality with a high-performance, 16-bit microcontroller (MCU) architecture that is optimized for Motor Control Applications. These devices are also available in extended operating temperature options.

    Operating Range:
  • Up to 40 MIPS operation (at 3.0-3.6V):
  • Industrial temperature range (-40°C to +85°C)
  • Extended temperature range (-40°C to +125°C)
    High-Performance DSC CPU:
  • Modified Harvard architecture
  • C compiler optimized instruction set
  • 16-bit-wide data path
  • 24-bit-wide instructions
  • Linear program memory addressing up to 4M instruction words
  • Linear data memory addressing up to 64 Kbytes
  • 83 base instructions: mostly one word/one cycle
  • Two 40-bit accumulators with rounding and saturation options
  • Flexible and powerful addressing modes:
  • Software stack
  • 16 x 16 fractional/integer multiply operations
  • 32/16 and 16/16 divide operations
  • Single-cycle multiply and accumulate: Up to ±16-bit shifts for up to 40-bit data
    Timers/Capture/Compare/PWM:
  • Timer/Counters, up to three 16-bit timers
  • Input Capture (up to four channels)
  • Output Compare (up to two channels)
    Interrupt Controller:
  • 5-cycle latency
  • Up to 26 available interrupt sources
  • Up to three external interrupts
  • Seven programmable priority levels
  • Four processor exceptions
    Digital I/O:
  • Peripheral pin Select functionality
  • Up to 21 programmable digital I/O pins
  • Wake-up/Interrupt-on-Change for up to 21 pins
  • Output pins can drive from 3.0V to 3.6V
  • Up to 5V output with open drain configurations on 5V tolerant pins
  • 4 mA sink on all I/O pins
    On-Chip Flash and SRAM:
  • Flash program memory (12 Kbytes)
  • Data SRAM (1024 bytes)
  • Boot and General Security for program Flash System Management:
  • Flexible clock option
  • Power-up Timer
  • Oscillator Start-up Timer/Stabilizer
  • Watchdog Timer with its own RC oscillator
  • Fail-Safe Clock Monitor
  • Reset by multiple sources
    Power Management:
  • On-chip 2.5V voltage regulator
  • Switch between clock sources in real time
  • Idle, Sleep, and Doze modes with fast wake
    Motor Control Peripherals:
  • 6-channel 16-bit Motor Control PWM
  • Quadrature Encoder Interface module
    Analog-to-Digital Converters (ADCs):
  • 10-bit, 1.1 Msps or 12-bit, 500 Ksps conversion:
  • -Two and four simultaneous samples (10-bit ADC)
  • -Up to six input channels with auto-scanning
    CMOS Flash Technology:
  • Low-power, high-speed Flash technology
  • Fully static design
  • 3.3V (±10%) operating voltage
  • Industrial and Extended temperature
  • Low power consumption
    Communication Modules:
  • 4-wire SPI:
  • -Framing supports I/O interface to simple codecs
  • - Supports 8-bit and 16-bit data
  • -Supports all serial clock formats and sampling modes
  • I2C™:
  • - Full Multi-Master Slave mode support
  • - 7-bit and 10-bit addressing
  • - Bus collision detection and arbitration
  • - Integrated signal conditioning
  • - Slave address masking
  • UART:
  • - Interrupt on address bit detect
  • - Interrupt on UART error
  • - Wake-up on Start bit from Sleep mode
  • - 4-character TX and RX FIFO buffers
  • - LIN bus support
  • - IrDA® encoding and decoding in hardware
  • - High-Speed Baud mode
  • - Hardware Flow Control with CTS and RTS
