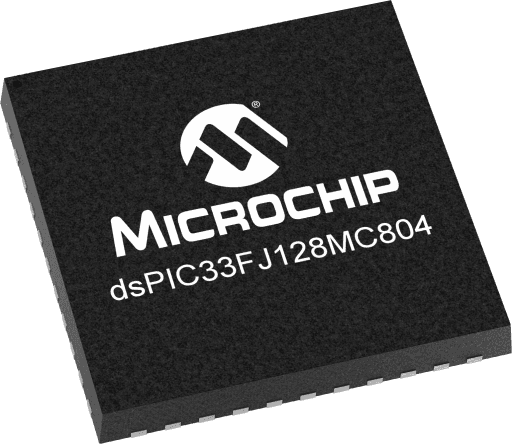

Microchip DSPIC33FJ128MC804-E/PT
Manufacturer No:
DSPIC33FJ128MC804-E/PT
Manufacturer:
Microchip
Package:
44-TQFP
Description:
40 MIPS, 128KB Flash, 16KB RAM, 44 pins, Motor Control, DAC, CAN
Quantity:
In Stock :5021
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Wed, Jul 1 - Thu, Jul 2, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
DSPIC33FJ128MC804-E/PT Information
Microchip DSPIC33FJ128MC804-E/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ128MC804-E/PT.
- Type
- Parameter
- CPU Type
- dsPIC® DSC
- CPU Speed Max MHz (megahertz)
- 40
- Program Memory Size (KB)
- 128
- Multiple Flash Panels
- False
- Direct Memory Access (DMA) Channels
- 8
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 150
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 44
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 2
- ADC Modules
- 1
- ADC Channels
- 9
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 1100
- Number of DACs
- 2
- DAC outputs
- 2
- Max DAC Resolution (bits)
- 16
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip DSPIC33FJ128MC804-E/PT.
Data Sheets:
Supporting Collateral:
Legacy Collaterals:
Programming Specifications:
User Guide:
Application Notes:
Reference Manual:
The dsPIC33F 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control. The devices are pin compatible with the PIC24HJ family of devices, and share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F, dsPIC30F and dsPIC33F devices.
- Operating Range:
- Up to 40 MIPS operation (@ 3.0-3.6V)
- Industrial temperature range (-40°C to +85°C)
- Extended temperature range (-40°C to +125°C)
- High temperature range (-40°C to +150°C)
- High-Performance DSC CPU:
- Modified Harvard architecture
- C compiler optimized instruction set
- 16-bit wide data path
- 24-bit wide instructions
- Linear program memory addressing up to 4M instruction words
- Linear data memory addressing up to 64 Kbytes
- 83 base instructions: mostly 1 word/1 cycle
- Two 40-bit accumulators with rounding and saturation options
- Flexible and powerful addressing modes: Indirect, Modulo and Bit-reversed software stack
- 16 x 16 fractional/integer multiply operations
- 32/16 and 16/16 divide operations
- Single-cycle multiply and accumulate:
- Accumulator write back for DSP operations
- Dual data fetch
- Up to ±16-bit shifts for up to 40-bit data
- On-Chip Flash and SRAM:
- Flash program memory (up to 32 Kbytes)
- Data SRAM (2 Kbytes)
- Boot and General Security for program Flash
- Direct Memory Access (DMA):
- 8-channel hardware DMA
- Up to 2 Kbytes dual ported DMA buffer area (DMA RAM) to store data transferred via DMA
- Allows data transfer between RAM and a peripheral while CPU is executing code (no cycle stealing)
- Most peripherals support DMA
- Timers/Capture/Compare/PWM:
- Timer/Counters, up to three 16-bit timers
- Can pair up to make one 32-bit timer, 1 timer runs as Real-Time Clock with external 32.768 kHz oscillator, and Programmable prescaler
- Input Capture (up to 4 channels): Capture on up, down or both edges, 16-bit capture input functions and 4-deep FIFO on each capture
- Output Compare (up to 2 channels): Single or Dual 16-Bit Compare mode and 16-bit Glitchless PWM mode
- Interrupt Controller:
- 5-cycle latency, 118 interrupt vectors, Up to 26 available interrupt sources
- Up to 3 external interrupts, 7 programmable priority levels, and 5 processor exceptions
- Digital I/O:
- Peripheral pin Select functionality
- Up to 35 programmable digital I/O pins
- Wake-up/Interrupt-on-Change for up to 21 pins
- Output pins can drive from 3.0V to 3.6V
- Up to 5V output with open drain configuration
- All digital input pins are 5V tolerant
- 4 mA sink on all I/O pins
- System Management:
- Flexible clock options: External, crystal, resonator, internal RC
- Fully integrated Phase-Locked Loop (PLL) with Extremely low jitter
- Power-up Timer
- Oscillator Start-up Timer/Stabilizer
- Watchdog Timer with its own RC oscillator
- Fail-Safe Clock Monitor
- Reset by multiple sources
- Power Management:
- On-chip 2.5V voltage regulator
- Switch between clock sources in real time
- Idle, Sleep and Doze modes with fast wake-up
- Analog-to-Digital Converters (ADCs):
- 10-bit, 1.1 Msps or 12-bit, 500 Ksps conversion
- 2 and 4 simultaneous samples (10-bit ADC)
- Up to 6 input channels with auto-scanning
- Conversion start can be manual or synchronized with 1 of 4 trigger sources
- Conversion possible in Sleep mode
- ±2 LSb max integral nonlinearity
- ±1 LSb max differential nonlinearity
- Comparator Module:
- Two analog comparators with programmable input/output configuration
- CMOS Flash Technology:
- Low-power, high-speed Flash technology
- Fully static design
- 3.3V (±10%) operating voltage
- Industrial and Extended temperature
- Low power consumption
- Motor Control Peripherals:
- 6-channel 16-bit Motor Control PWM
- 3 duty cycle generators
- Independent or Complementary mode
- Programmable dead time and output polarity
- Edge-aligned or center-aligned
- Manual output override control
- 1 Fault input
- Trigger for ADC conversions
- PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
- PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
- 2-channel 16-bit Motor Control PWM:
- 1 duty cycle generator
- Independent or Complementary mode
- Programmable dead time and output polarity
- Edge-aligned or center-aligned
- Manual output override control
- 1 Fault input
- Trigger for ADC conversions
- PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
- PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
- Quadrature Encoder Interface module
- Phase A, Phase B and index pulse input
- 16-bit up/down position counter
- Communication Modules:
- 4-wire SPI (up to two modules):
- Framing supports I/O interface to simple codecs
- Supports 8-bit and 16-bit data
- Supports all serial clock formats and sampling modes
- I2C™ with Full Multi-Master Slave mode support
- 7-bit and 10-bit addressing
- Bus collision detection and arbitration
- Integrated signal conditioning
- Slave address masking
- UART (up to two modules) with Interrupt on address bit detect and Interrupt on UART error
- Wake-up on Start bit from Sleep mode
- 4-character TX and RX FIFO buffers
- LIN bus support
- IrDA® encoding and decoding in hardware
- High-Speed Baud mode
- Hardware Flow Control with CTS and RTS
- Enhanced CAN (ECAN. module) 2.0B active
- Up to eight transmit and up to 32 receive buffers
- 16 receive filters and three masks
- Loopback, Listen Only and Listen All
- Messages modes for diagnostics and bus monitoring
- Wake-up on CAN message
- Automatic processing of Remote Transmission Requests
- FIFO mode using DMA and DeviceNet. addressing support
- Parallel Master Slave Port (PMP/EPSP):
- Supports 8-bit or 16-bit data
- Supports 16 address line
- Programmable Cyclic Redundancy Check (CRC) Programmable bit
