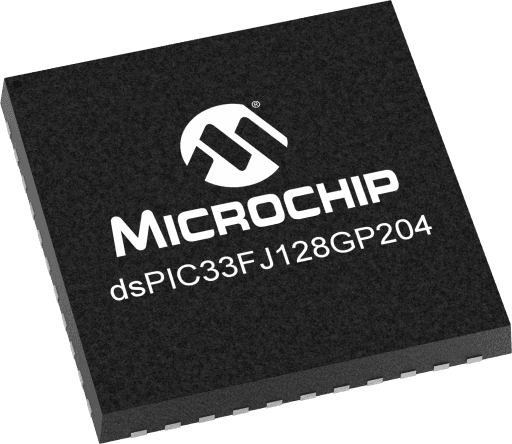

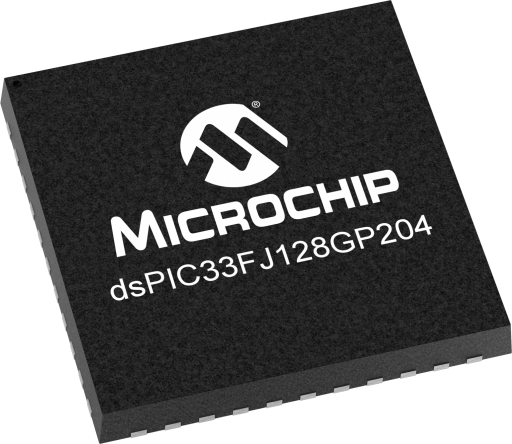

Microchip DSPIC33FJ128GP204T-I/ML
Manufacturer No:
DSPIC33FJ128GP204T-I/ML
Manufacturer:
Package:
44-VQFN Exposed Pad
Description:
40 MIPS, 128KB Flash, 8KB RAM, 44 pins, DAC
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
DSPIC33FJ128GP204T-I/ML information
Microchip DSPIC33FJ128GP204T-I/ML technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ128GP204T-I/ML.
- Type
- Parameter
- ADC Resolution (bits)
- 12
- ADC Sampling Rate (ksps)
- 1100
- ADC Modules Min MB (megabyte)
- 1
- CAN/CAN-FD
- 0
- Type of CAN module Max A (ampere)
- None
- Configurable Logic Cell (CLC/CCL)
- 0
- CPU
- dsPIC® DSC
- CPU Speed (MIPS/DMIPS)
- 40
- Number of Comparators
- 2
- DAC Resolution (Bits)
- 4
- DAC Outputs
- 0
- Number of DACs
- 1
- Hardware RTCC/RTC
- No
- Number of PWM Time Bases
- 2
- Operation Voltage Max.(V)
- 3.6
- Operation Voltage Min.(V)
- 3
- Output Compare Channels
- 4
- SMPS
- 0
- Segmented LCD (# of segments)
- 0
- USB
- None
- Program Memory Size (KB)
- 128
- Peripheral Pin Select / Pin Muxing
- Yes
- Direct Memory Access (DMA) Channels
- 8
- Multiple Flash Panels
- 0
- Motor Control PWM Outputs
- 0
- Quadrature Encoder Interface
- 0
- Low Power
- No
- ADC Channels
- 13
- Pincount
- 44
- Crypto Engine
- No
- TempRange Min
- -40
- TempRange Max
- 125
Download datasheets and manufacturer documentation for Microchip DSPIC33FJ128GP204T-I/ML.
Reference Manual:
Supporting Collateral:
Programming Specifications:
Application Notes:
Legacy Collaterals:
Data Sheets:
- Operating Range
- Up to 40 MIPS operation (at 3.0-3.6V)
- 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
- 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
- High-Performance dsPIC33FJ core
- Modified Harvard architecture
- C compiler optimized instruction set
- 24-bit wide instructions, 16-bit wide data path
- Linear program memory addressing up to 4M instruction words
- Linear data memory addressing up to 64 Kbytes
- Two 40-bit accumulators with rounding and saturation options
- Indirect, Modulo and Bit-reversed addressing modes
- 16 x 16 fractional/integer multiply operations
- 32/16 and 16/16 divide operations
- Single-cycle multiply and accumulate (MAC) with accumulator write back and dual data fetch
- Single-cycle MUL plus hardware divide
- Up to ±16-bit shifts for up to 40-bit data
- On-chip Flash and SRAM
- Direct Memory Access (DMA)
- 8-channel hardare DMA
- Up to 2 Kbytes dual ported DMA buffer area (DMA RAM) to store data transferred via DMA
- Most peripherals support DMA
- Timers/Capture/Compare/PWM
- Up to five 16-bit and up to two 32-bit Timers/Counters
- One timer runs as a Real-Time Clock with an external 32.768 kHz oscillator
- Input Capture (up to four channels) with Capture on up, down or both edges
- 16-bit capture input functions
- 4-deep FIFO on each capture
- Output Compare (up to four channels) with Single or Dual 16-bit Compare mode and 16-bit Glitchless PWM mode
- Hardware Real-Time Clock/Calendar (RTCC)
- Interrupt Controller
- 5-cycle latency
- 118 interrupt vectors
- Up to 49 available interrupt sources
- Up to three external interrups
- Seven programmable priority levels
- Five processor exceptions
- Digital I/O
- Peripheral pin Select functionality
- Up to 35 programmable digital I/O pins
- Wake-up/Interrupt-on-Change for up to 21 pins
- Output pins can drive from 3.0V to 3.6V
- Up to 5V output with open drain configuration
- All digital input pins are 5V tolerant
- 4 mA sink on all I/O pins
- System Management
- Flexible clock options: External, crystal, resonator and internal RC
- Fully integrated Phase-Locked Loop (PLL)
- Extremely low jitter PLL
- Power-up Timer
- Oscillator Start-up Timer/Stabilizer
- Watchdog Timer with its own RC oscillator
- Fail-Safe Clock Monitor
- Reset by multiple sources
- Power Management
- On-chip 2.5V voltage regulator
- Switch between clock sources in real time
- Idle, Sleep, and Doze modes with fast wake-up
- Analog-to-Digital Converters (ADCs)
- 10-bit, 11 Msps or 12-bit, 500 Ksps conversion
- Two and four simultaneous samples (10-bit ADC)
- Up to 13 input channels with auto-scanning
- Conversion start can be manual or synchronized with one of four trigger sources
- Conversion possible in Sleep mode
- ±2 LSb max integral nonlinearity
- ±1 LSb max differential nonlinearity
- Other Analog Peripherals
- Two analog comparators with programmable input/output configuration
- 4-bit DAC with two ranges for analog comparators
- 16-bit dual channel 100 Ksps audio DAC
- Data Converter Interface (DCI) module
- Codec interface
- Supports I2S and AC.97 protocols
- Up to 16-bit data words, up to 16 words per frame
- 4-word deep TX and RX buffers
- Communication Modules
- 4-wire SPI (up to two modules) with I/O interface to simple codecs
- I2C™ with Full Multi-Master Slave mode support, slave address masking, 7-bit and 10-bit addressing, integrated signal conditioning and bus collision detection
- UART (up to two modules) with LIN bus support, IrDA® and hardware flow control with CTS and RTS
- Parallel Master Slave Port (PMP/EPSP)
- Programmable Cyclic Redundancy Check (CRC)
- Debugger Development Support
- In-circuit and in-application programming
- Two program breakpoints
- Trace and run-time watch
