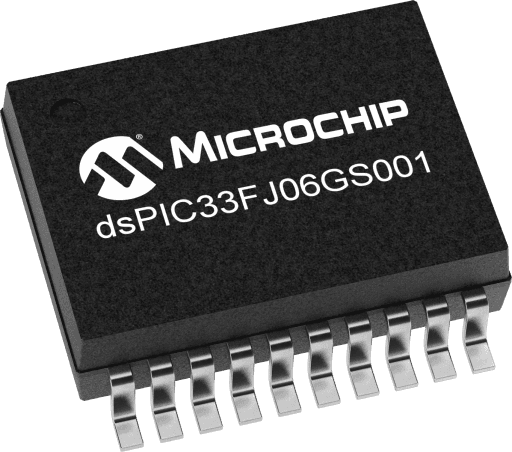

Microchip DSPIC33FJ06GS001-I/P

Manufacturer No:

DSPIC33FJ06GS001-I/P

Manufacturer:

Microchip

Package:

18-DIP (0.300, 7.62mm)

Description:

40 MIPS, 6KB Flash, 256B RAM, 18 pins, Digital Power SMPS, fast ADC, DAC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33FJ06GS001-I/P information

Microchip DSPIC33FJ06GS001-I/P technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ06GS001-I/P.

Type
Parameter

CPU Type
dsPIC® DSC

CPU Speed Max MHz (megahertz)
40

Program Memory Size (KB)
6

Multiple Flash Panels
False

Direct Memory Access (DMA) Channels
0

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
125

Operation Voltage Min.(V)
3

Operation Voltage Max.(V)
3.6

Pin Count
18

Low Power
No

Number of Comparators
2

ADC Modules
1

ADC Channels
6

ADC Resolution Max
10

ADC Sampling Rate (ksps)
2000

Number of DACs
2

DAC outputs
0

Max DAC Resolution (bits)
10

Hardware RTCC
No

Motor Control PWM Channels
4

SMPS PWM Channels
4

Number of PWM Time Bases
2

Output Compare Channels
0

Number of CAN Modules
0

Type of CAN module Max
None

Crypto Engine
No

Quadrature Encoder Interface (QEI)
0

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
0

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33FJ06GS001-I/P.

These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection, Digital Lighting

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS

Code Efficient (C and Assembly) Architecture
Two 40-Bit Wide Accumulators
Single-Cycle (MAC/MPY) with Dual Data Fetch
Single-Cycle Mixed-Sign MUL plus Hardware Divide

Clock Management
±2% Internal Oscillator
Programmable PLLs and Oscillator Clock Sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer (WDT)
Fast Wake-up and Start-up

Low-Power Management modes (Sleep, Idle, Doze)
Integrated Power-on Reset and Brown-out Reset
2.0 mA/MHz Dynamic Current (typical)
135 µA IPD Current (typical)

Up to Three PWM Pairs with Independent Timing
Dead Time for Rising and Falling Edges
1.04 ns PWM Resolution for Dead Time, Duty Cycle, Phase and Frequency
PWM Support for: DC/DC, AC/DC, Inverters, PFC and Lighting
Programmable Fault Inputs
Flexible Trigger Configurations for ADC Conversions

Two High-Speed Comparators with Direct Connection to the PWM module
ADC module: 10-bit resolution with Successive Approximation Register (SAR) converter (2 Msps) and three Sample-and-Hold (S&H) circuits
Up to 8 input channels grouped into four conversion pairs, plus two inputs for monitoring voltage references
Flexible and independent ADC trigger sources
Dedicated Result register for each analog channel

Two 16-Bit General Purpose Timers/Counters
Input Capture module
Output Compare module
Peripheral Pin Select (PPS) to allow Function Remap

UART module (10 Mbps): With support for LIN/J2602 protocols and IrDA®
4-Wire SPI module
I2C™ module (up to 1 Mbaud) with SMBus Support
PPS to allow Function Remap
