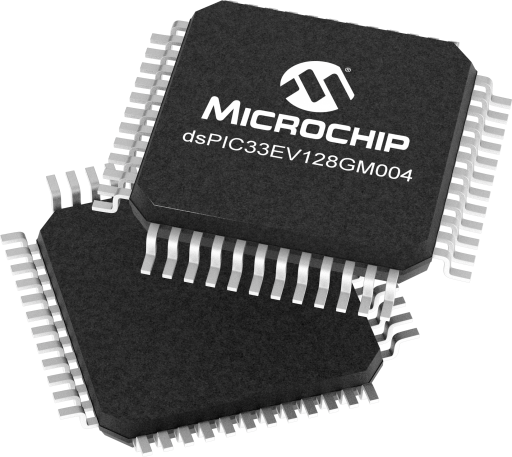

Microchip DSPIC33EV128GM004-I/ML
Manufacturer No:
DSPIC33EV128GM004-I/ML
Manufacturer:
Microchip
Package:
44-VQFN Exposed Pad
Description:
70 MIPS, 128KB Flash, 8KB RAM, 44 pins, Motor Control, Op Amps, SENT
Quantity:
In Stock :5393
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Wed, May 27 - Thu, May 28, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
DSPIC33EV128GM004-I/ML Information
Microchip DSPIC33EV128GM004-I/ML technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33EV128GM004-I/ML.
- Type
- Parameter
- CPU Type
- dsPIC® DSC
- CPU Speed Max MHz (megahertz)
- 70
- Program Memory Size (KB)
- 128
- Multiple Flash Panels
- No
- Direct Memory Access (DMA) Channels
- 4
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 150
- Operation Voltage Min.(V)
- 4.5
- Operation Voltage Max.(V)
- 5.5
- Pin Count
- 44
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 5
- ADC Modules
- 1
- ADC Channels
- 24
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 1100
- Number of DACs
- 1
- DAC outputs
- 1
- Max DAC Resolution (bits)
- 7
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip DSPIC33EV128GM004-I/ML.
Supporting Collateral:
User Guide:
Programming Specifications:
Reference Manual:
Application Notes:
Data Sheets:
Microchip’s dsPIC33EV family of digital signal controllers (DSCs) features a 5V 70 MIPS dsPIC® DSC core with enhanced on-chip features and is ideal for operating in harsh environments such as appliances, industrial and automotive applications. The 5V dsPIC33EV family comes with rich peripheral integration which includes CAN, SENT, High Speed PWMs, OP Amps and Error Correcting Code Flash for increased reliability and safety. The dsPIC33EV family of devices enable the design of high-performance, precision motor control systems that are more energy efficient. They can be used to control BLDC, permanent magnet synchronous, AC induction and stepper motors. These devices are ideal for high-performance general purpose, Touch, advanced sensor interfacing and control applications in automotive, industrial, consumer and medical segments.
The functional safety ready dsPIC33EVXXXGM00X/10X family has many features that help simplify achieving ISO 26262 functional safety compliance of your safety-critical designs. The family offers:
• Functional Safety Manual and FMEDA report
• MPLAB XC16 Functional Safety Compiler available with registration
• Learn more about our functional safety capabilities including hardware, software, and supporting collateral
- Operating Conditions
- 4.5V to 5.5V, -40ºC to +85ºC, DC to 70 MIPS
- 4.5V to 5.5V, -40ºC to +125ºC, DC to 60 MIPS
- 4.5V to 5.5V, -40ºC to +150ºC, DC to 40 MIPS
- dsPIC33E Core
- Code-Efficient (C and Assembly) Architecture
- Two 40-Bit Wide Accumulators
- Single-Cycle (MAC/MPY) with Dual Data Fetch
- Single-Cycle, Mixed-Sign MUL plus Hardware Divide
- 32-Bit Multiply Support
- Provides a boot Flash segment in addition to the existing general Flash segment
- Error Code Correction (ECC) for Flash
- Added Two Alternate Register Sets for Fast Context Switching
- High-Speed PWM
- Up to Six Pulse-Width Modulation (PWM) Outputs (three generators)
- Primary Master Time Base Inputs allow Time Base Synchronization from Internal/External Sources
- Dead Time for Rising and Falling Edges
- 8.3 ns PWM Resolution at 60 MIPS,
- 16.6 ns Center-Aligned mode at 60 MIPS
- PWM support for DC/DC, AC/DC, inverters, Power Factor Correction (PFC) and lighting
- PWM support for Brushless Direct Current (BLDC), Permanent Magnet Synchronous Motor (PMSM), AC Induction Motor (ACIM), Switched Reluctance Motor (SRM)
- Programmable Fault inputs
- Flexible trigger configurations for Analog-to-Digital conversion
- Independent Time Base
- Supports PWM lock, PWM output chopping and dynamic phase shifting
- Integrated Analog Features
- ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
- Up to 36 analog inputs
- Flexible and Independent ADC Trigger Sources
- Up to Four Op Amp/Comparators with Direct Connection to the ADC module:
- Additional dedicated comparator and 7-bit Digital-to-Analog Converter (DAC)
- Programmable references with 128 voltage points
- Programmable blanking and filtering
- Charge Time Measurement Unit
- Supports mTouch™ capacitive touch sensing
- Provides high-resolution time measurement (1 ns)
- On-chip temperature measurement
- Temperature sensor diode
- Multiple sources of edge input triggers
- Timers/Output Compare/Input Capture
- Up to nine general purpose timers
- Five 16-bit or up to two 32-bit timers/counters, Timer3 can provide ADC trigger
- Four Output Capture modules configurable as timers/counters
- Four Input Capture modules
- Communication Interfaces
- Support for LIN/J2602 bus support and IrDA®
- High and low speed (SCI)
- 25 Mbps data rate without PPS used
- One I2C™ module (up to 1 Mbaud) with SMBus Support
- Two SENT J2716 (Single Edge Nibble Transmission-Transmit/Receive) module for Automotive Applications
- Direct Memory Access (DMA)
- 4-Channel DMA with User-Selectable Priority Arbitration
- Universal Asynchronous Receiver/Transmitter (UART), Serial Peripheral Interface (SPI), ADC, Input Capture, Output Compare
- Qualification and Class B Support
- AEC-Q100 Grade 1 (-40ºC to +125ºC)
- AEC-Q100 Grade 0 (-40ºC to +150ºC)
- Class B Safety Library, IEC 60730
- Functional Safety Features
- Backup FRC
- Windowed WDT uses LPRC
- Windowed Deadman Timer uses System Clock (System Windowed Watchdog Timer)
- H/W Clock Monitor Circuit
- Oscillator Frequency Monitoring through CTMU
- Dedicated PWM Fault Pin
- Lockable Clock Configuration
- Functional Safety support (ISO26262)
- ASIL-B focused applications
- FMEDA and Safety manual
- XC16 Functional Safety Compiler
- Functional Safety hardware features
- Flash with Error Correction Code (ECC)
- CodeGuard™ Memory Protection
- On-chip Regulator for CPU
- Backup FRC and redundant clock sources
- Fail Safe Clock Monitor
- Windowed Watchdog Timer (WDT)
- Windowed Deadman Timer (DMT)
- Oscillator Frequency Monitoring through CTMU (OSCI, SYSCLK, FRC, BFRC, LPRC)
- BOR and POR
- Illegal Opcode Detection
- Analog peripherals redundancies
- Cyclical Redundancy Check (CRC)
- PWM Lock and Dedicated PWM Fault Pin
- Internal Loopback to test communication peripherals and IO ports
- SFR and Configuration Locks
- Address Trap
- Math Error Trap
- Redundant data storage for Flash-based Configuration bits and Peripheral Pin Select (PPS) Configuration bits
