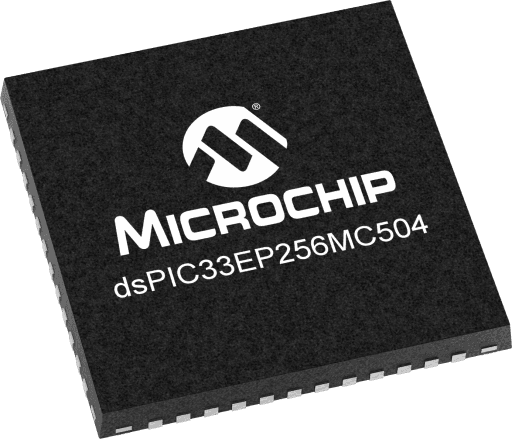

Microchip DSPIC33EP256MC504-I/PT
Manufacturer No:
DSPIC33EP256MC504-I/PT
Manufacturer:
Microchip
Package:
44-TQFP
Description:
70 MIPS, 256KB Flash, 32KB RAM, 44 pins, Motor Control, OpAmps, CAN
Quantity:
In Stock :6853
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Mon, Jun 22 - Tue, Jun 23, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
DSPIC33EP256MC504-I/PT Information
Microchip DSPIC33EP256MC504-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33EP256MC504-I/PT.
- Type
- Parameter
- CPU Type
- dsPIC® DSC
- CPU Speed Max MHz (megahertz)
- 70
- Program Memory Size (KB)
- 256
- Multiple Flash Panels
- False
- Direct Memory Access (DMA) Channels
- 4
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 150
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 44
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 4
- ADC Modules
- 1
- ADC Channels
- 9
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 1100
- Number of DACs
- 1
- DAC outputs
- 0
- Max DAC Resolution (bits)
- 4
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip DSPIC33EP256MC504-I/PT.
Reference Manual:
Supporting Collateral:
Programming Specifications:
Application Notes:
Data Sheets:
Microchip’s dsPIC33E
family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core
with integrated DSP and enhanced on-chip peripherals. These DSCs enable the
design of high-performance, precision motor control systems that are more energy
efficient, quieter in operation, have a great range and extended life. They can
be used to control brushless DC, permanent magnet synchronous, AC induction and
stepper motors. These devices are also ideal for high-performance general
purpose applications.
- Operating Conditions
- 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
- 3.0V to 3.6V, -40ºC to +150ºC, DC to 60 MIPS
- dsPIC33E DSC Core
- Modified Harvard Architecture
- C Compiler Optimized Instruction Set
- 16-bit Wide Data Path
- 24-bit Wide Instructions
- 16x16 Integer Multiply Operations
- 32/16 and 16/16 Integer Divide Operations
- Two 40-bit Accumulators with Rounding and Saturation Options
- Single-Cycle Multiply and Accumulate
- Single-Cycle shifts for up to 40-bit Data
- 16x16 Fractional Multiply/Divide Operations
- High-Speed PWM
- Up to three PWM pairs with independent timing
- Dead time for rising and falling edges
- 7.14 ns PWM resolution
- PWM support for Inverters, PFC, Lighting- BLDC, PMSM, ACIM, SRM
- Programmable Fault inputs
- Flexible trigger configurations for ADC conversions
- Advanced Analog Features
- ADC module: Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
- Up to three Op amp/Comparators
- Op Amp direct connection to the ADC module
- Additional dedicated comparator
- Programmable references with 32 voltage points for comparators
- Charge Time Measurement Unit (CTMU)
- Timers/Output Compare/Input Capture
- 12 general purpose timers
- Five 16-bit and up to two 32-bit timers/counters
- Four OC modules configurable as timers/counters
- PTG module with two configurable timers/counters
- 32-bit Quadrature Encoder Interface (QEI) module configurable as a timer/counter
- Four IC modules
- Peripheral Trigger Generator (PTG) for scheduling complex sequences
- Communication Interfaces
- Two UART modules (15 Mbps)
- Two 4-wire SPI modules (15 Mbps)
- CAN™ module (1 Mbaud) CAN 2.0B support
- Two I2C™ modules (up to 1 Mbaud) with SMBus support
- PPS to allow function remap
- Programmable Cyclic Redundancy Check (CRC)
- Direct Memory Access (DMA)
- 4-channel DMA with user-selectable priority arbitration
- UART, SPI, ADC, CAN, IC, OC, and Timers
DSPIC33EP256MC504-I/PT FAQ
Can I request a quote for DSPIC33EP256MC504-I/PT?
DSPIC33EP256MC504-I/PT from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for DSPIC33EP256MC504-I/PT?
The final price for DSPIC33EP256MC504-I/PT depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for DSPIC33EP256MC504-I/PT?
DSPIC33EP256MC504-I/PT is a Microchip Embedded part. Key details include Configurable Logic Cell Modules (CLC /CCL): 0 and Peripheral Pin Select (PPS)/Pin Muxing: Yes; contact us if you need the specifications verified before sourcing.
