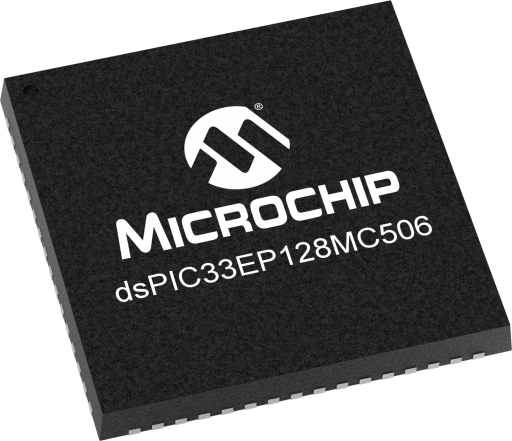

Microchip DSPIC33EP128MC506-I/PT
Microchip DSPIC33EP128MC506-I/PTMicrochip DSPIC33EP128MC506-I/PT

Microchip DSPIC33EP128MC506-I/PT

Manufacturer No:

DSPIC33EP128MC506-I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

70 MIPS, 128KB Flash, 16KB RAM, 64 pins, Motor Control, OpAmps, CAN
